Engine Mount

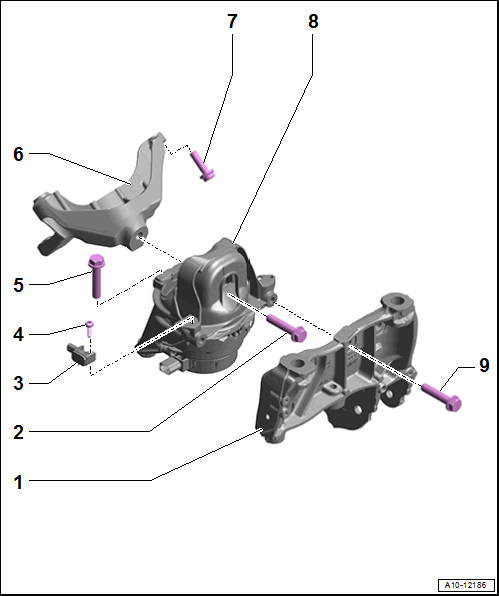

Fig 1: Overview - Engine Mount

Courtesy of AUDI OF AMERICA, LLC

1. Subframe
2. Bolt
   • 90 Nm + 90°
   • Replace after removing.
3. Assembly Mount Sensor
   • Assembly Mount Sensor 1 -G748-, right
   • Assembly Mount Sensor 2 -G749- left
   • Removing and Installing. Refer to ASSEMBLY MOUNT SENSOR, REMOVING AND INSTALLING .
   • Installation position. Refer to Fig 2.
4. Bolt
   • 10 Nm
5. Bolt
   • 55 Nm
6. Engine Support
   • Removing and installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
7. Bolt
   • 50 Nm + 90°
   • Replace after removing.
8. Engine Mount
   • With
     • Left Electrohydraulic Engine Mount Solenoid Valve -N144- /Assembly Mount Actuator 2 -N514- left
     • Right Electrohydraulic Engine Mount Solenoid Valve -N145- /Assembly Mount Actuator 1 -N513- right
   • Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
9. Bolt
   • 30 Nm

Assembly Mount Sensor - Installation Position

Fig 2: Subframe Mount Sensor - Installation Position

Courtesy of AUDI OF AMERICA, LLC

• The sensor -2- must engage in the hole -arrow- on the engine mount -1-.
