Overview - Horn

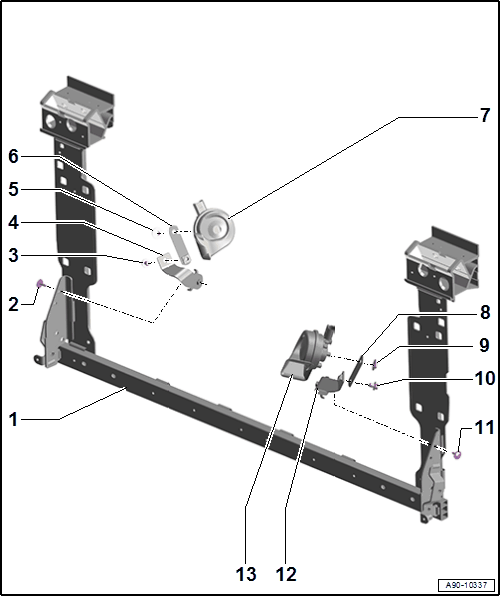

Fig 1: Exploded View Of Horn

Courtesy of AUDI OF AMERICA, LLC

Lock Carrier
Bolt
- 8 Nm
Bolt
- 16 Nm
Bracket
- For the horn
Nut
- 11 Nm
Retaining Bracket
Low Tone Horn -H7-
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
Retaining Bracket
Nut
- 11 Nm
Bolt
- 16 Nm
Bolt
- 8 Nm
Bracket
- For the horn
High Tone Horn -H2-
- Removing and installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING .
