Window Guide, Removing And Installing: Removing

-- If equipped, remove the sun shade. Refer to DOOR WINDOW SUN SHADE, REMOVING AND INSTALLING .

-- Remove the window frame trim panel. Refer to WINDOW FRAME TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the B-pillar trim. Refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, REAR .

-- Remove the C-pillar trim. Refer to DOOR C-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the rear door window. Refer to REAR DOOR WINDOW, REMOVING AND INSTALLING .

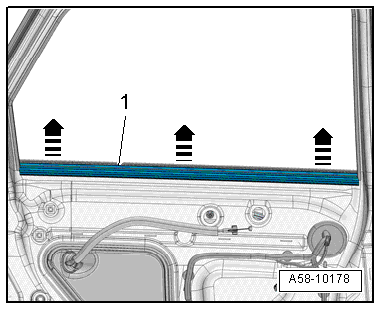

-- Loosen the lower window guide -1- upward -arrows-.

Courtesy of AUDI OF AMERICA, LLC

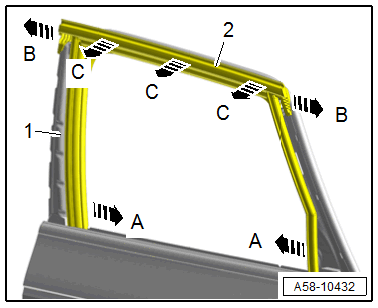

-- Pull the window guide -2- out of the guide rails -A arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the window guide corners -B arrows-.

-- Starting at the front, pull the window guide out of the guide, working outward from the door flange -1- -C arrows-.
