Overview - Rear Side Window

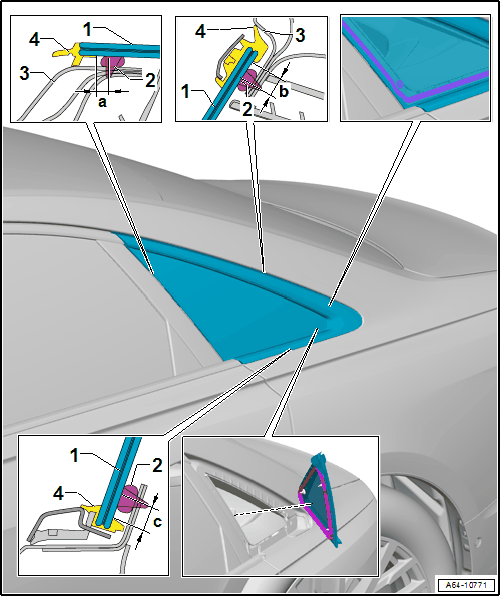

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Rear Side Window
- Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- After installing, push in using the locating pins
- Adhesive Bead
- Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Different distances to window edge:
- Dimension -a- = 8.0 mm
- Dimension -b- = 7.5 mm
- Dimension -c- = 7.5 mm
- Adhesive bead thickness. Refer to Adhesive Application: .
- Side Window Frame
- Molding
