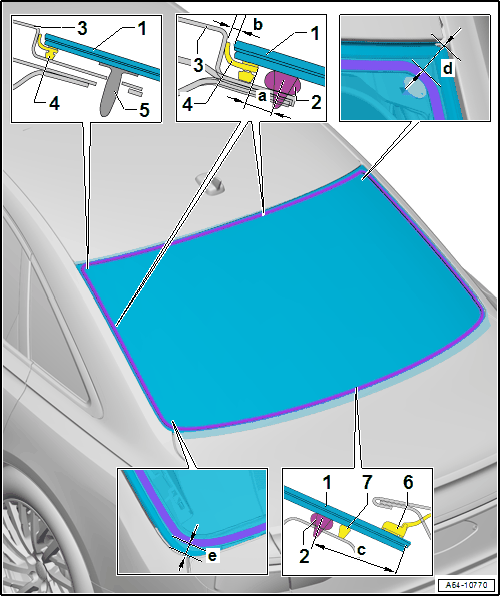

Overview - Rear Window

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI OF AMERICA, LLC

1. Rear Window
   • Removing and Installing. Refer to REAR WINDOW, REMOVING AND INSTALLING .
   • Distance to roof frame: dimension -b- = 2 mm
   • Center the side distance to the D-pillars
2. Adhesive Bead
   • Observe minimum curing times. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
   • Note the different distances to the window edge:
     • Dimension -a- = 7.5 mm
     • Dimension -c- = 38 mm
     • Dimension -d- = 20 mm
     • Dimension -e- = 17 mm
   • Adhesive bead thickness. Refer to Adhesive Application: .
3. Rear Window Frame
4. Molding
5. Centering Pin
   • Quantity: 2
   • Is cut through when removing the window
6. Aero Lip
7. Spacer
   • Quantity: 5
   • Place on the applied markings
