Mounting Bracket, Removing And Installing: Installing
-- Engage the operating cable in the operating lever on the mounting bracket.

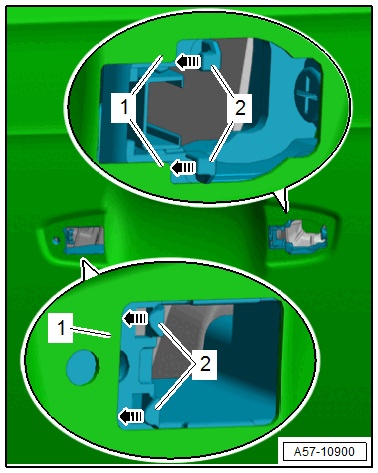

-- Bring the mounting bracket -2- into the installation position and on the outer door panel -1- -arrows-.
Further installation is performed in reverse order of removal, while noting the following:
- Lock the anti-theft cover. Refer to Removing => anti-theft cover .
- Equipped on some models: the wiring harness for the exterior door handle touch sensor/exterior door handle illumination must be routed on the mounting bracket, that points to the outer door panel.
TIP:
If the wiring harness is not routed correctly, there may be noises when opening and closing the door window, because the door window grazes the wiring harness.
