Special Tools

Special tools and workshop equipment required

• Torx T20 Screwdriver: T10072
  Fig 1: Identifying Socket Wrench T 10072

  Courtesy of AUDI OF AMERICA, LLC
• Screwdriver with T-bar : VAS272001
• Digital Caliper: VAS6335
• Setting Device - Basic Set: VAS6430/1  or Setting Device - Basic Set: VAS6430/1A

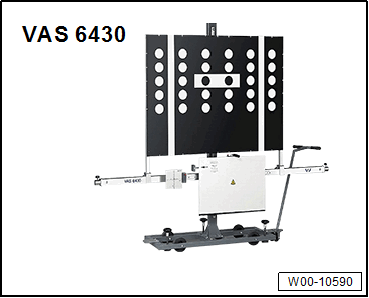

  Fig 2: Identifying Setting Device VAS 6430

  Courtesy of AUDI OF AMERICA, LLC
• ACC Reflector Mirror: VAS6430/3
• Calibration Tool: VAS6350A

  Courtesy of AUDI OF AMERICA, LLC

• Calibration Tool - Spacing Laser: VAS6350/2A
• Calibration Tool - Linear Laser: VAS6350/3A

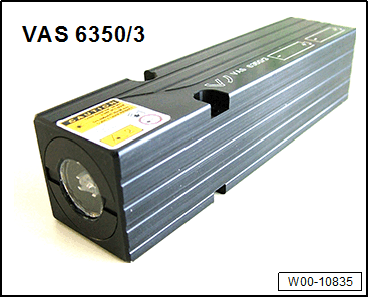

  Fig 3: Identifying Linear Laser

  Courtesy of AUDI OF AMERICA, LLC
• Calibration Tool - Lane Change Calibration Tool: VAS6350/4
• Night Vision Calibration Tool: VAS6430/6
• Adapter VAS 6430/9 : VAS6430/9  , only for surface mounted hoist with a dimension greater than 300 mm.
• Calibration Board Laser Scanner: VAS6430/12  , not illustrated
• Line Laser Mount: VAS6430/12-1  , not illustrated
• Scraper Set: VAS6845

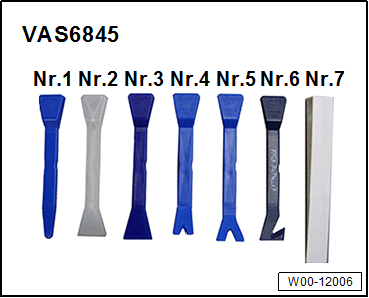

  Fig 4: Identifying Clip release lever no. 4 from the Scraper Set VAS6845

  Courtesy of AUDI OF AMERICA, LLC
• Wheel Alignment Computer - Camera: VAS701001/1
• Calibration System: VAS721001
