Rearview Camera -R189-, REMOVING AND INSTALLING: Removing
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
The Rearview Camera -R189- has a trailing cable. The vehicle wiring harness couplings are located in the rear lid.
-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

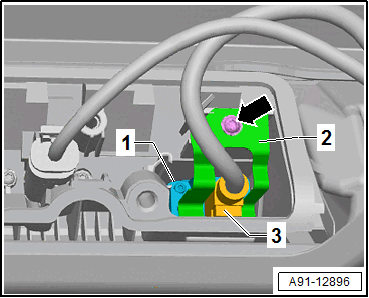

-- Release and disconnect the connectors for the Rearview Camera -R189- -1- in the rear lid.
-- Remove the bolt -arrow-.
-- Remove the securing bracket -2-.
-- Remove the Rearview Camera -R189- -1- from the grip piece.
