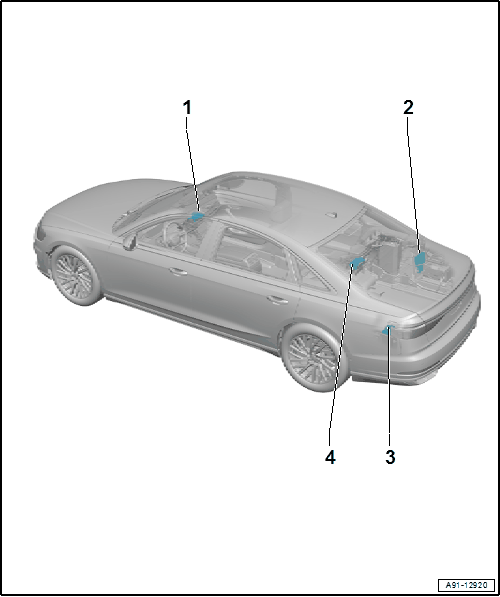

Component Location Overview - TV System
- DVD Player -R7-
- In the glove compartment
- Removing and Installing. Refer to DVD Player -R7-, REMOVING AND INSTALLING .
- The appropriate Wiring Diagram
- TV Tuner -R78-
- in rear right of luggage compartment
- Removing and Installing. Refer to TV TUNER, REMOVING AND INSTALLING .
- The appropriate Wiring Diagram
- TV Card Reader -R204-
- In the luggage compartment on the left rear side
- Removing and Installing. Refer to TV CARD READER, REMOVING AND INSTALLING .
- The appropriate Wiring Diagram
- DVD Changer -R161-
- In the rear seat backrest
- Removing and Installing. Refer to DVD Changer -R161-, REMOVING AND INSTALLING .
- The appropriate Wiring Diagram
