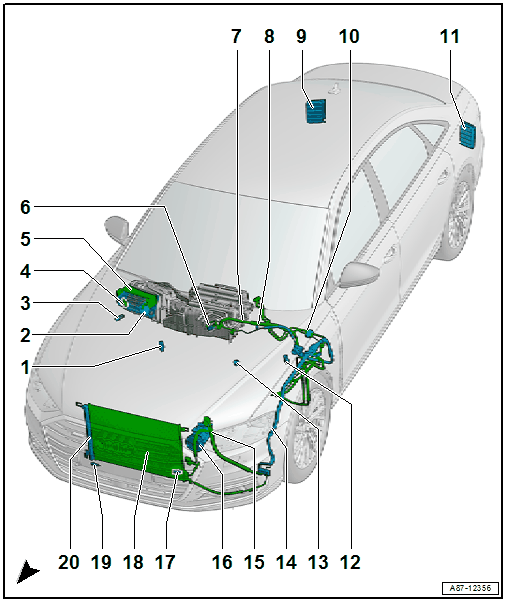

Component Location Overview - Components Outside Of Vehicle Interior, With R134A/R1234YF

Courtesy of AUDI OF AMERICA, LLC

1. Right Center Plenum Chamber Water Drain
   • Removing and installing. Refer to PLENUM CHAMBER WATER DRAIN, REMOVING AND INSTALLING .
2. Fresh Air Intake
   • Removing and installing. Refer to FRESH AIR INTAKE, REMOVING AND INSTALLING .
3. Right Outer Plenum Chamber Water Drain
   • Removing and installing. Refer to PLENUM CHAMBER WATER DRAIN, REMOVING AND INSTALLING .
4. Exterior Air Quality and Humidity Sensor -G935-
   • Removing and installing. Refer to Exterior Air Quality and Humidity Sensor -G935-, REMOVING AND INSTALLING .
5. Fresh Air Intake Cover
   • Removing and installing. Refer to FRESH AIR INTAKE RAIN WATER DRAIN CHANNEL, REMOVING AND INSTALLING .
6. Front Expansion Valve
   • Removing and installing. Refer to FRONT EXPANSION VALVE, REMOVING AND INSTALLING, WITH R134A/R1234YF .
7. Low Pressure Side Service Connection
8. High Pressure Side Service Connection
9. Right Vehicle Interior Forced Air Extraction
   • Removing and installing. Refer to VEHICLE INTERIOR FORCED AIR EXTRACTION, REMOVING AND INSTALLING .
10. Rear Expansion Valve
    • Removing and installing. Refer to REAR EXPANSION VALVE, REMOVING AND INSTALLING, PR NUMBER 9AH .
    • Installed depending on vehicle equipment
11. Left Vehicle Interior Forced Air Extraction
    • Removing and installing. Refer to VEHICLE INTERIOR FORCED AIR EXTRACTION, REMOVING AND INSTALLING .
12. Left Outer Plenum Chamber Water Drain
    • Removing and installing. Refer to PLENUM CHAMBER WATER DRAIN, REMOVING AND INSTALLING .
13. Left Center Plenum Chamber Water Drain
    • Removing and installing. Refer to PLENUM CHAMBER WATER DRAIN, REMOVING AND INSTALLING .
14. Refrigerant Line with Inner Heat Exchanger
    • Removing and installing. Refer to REFRIGERANT LINES WITH INNER HEAT EXCHANGER, REMOVING AND INSTALLING .
15. A/C Compressor Regulator Valve -N280-
    • Removing and installing. Refer to Refrigerant Circuit Components, Replacing or COMPONENTS, REPLACING .
16. A/C Compressor
    • Removing and installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
    • Overview. Refer to OVERVIEW - A/C COMPRESSOR POWER UNIT .
17. High Pressure Sensor -G65-
    • Removing and installing. Refer to High Pressure Sensor -G65-, REMOVING AND INSTALLING .
18. Condenser
    • Removing and installing. Refer to CONDENSER/GAS COOLER, REMOVING AND INSTALLING .
    • Overview. Refer to OVERVIEW - CONDENSER .
19. Outside Air Temperature Sensor -G17-
    • Removing and installing. Refer to Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING .
20. Dryer Cartridge
    • Removing and installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING, WITH R134A/R1234YF .
    • Overview. Refer to OVERVIEW - CONDENSER .
