Fragrance Diffuser System Control Module -J1101- With Fragrance Diffuser System Blower -V686-, Removing And Installing: Removing
Risk of fragrance leaking when tilting the.
- If there is a fault in the Fragrance Diffuser System Control Module -J1101-, the Fragrance System Functional Unit -GX43- or the Fragrance Diffuser System Actuator -V687-, the fragrance container valves may be open.
- If fragrance system components are faulty, then both containers with fragrance must be removed before removing the bracket.
-- Remove the bracket for the Vehicle Electrical System Control Module -J519- without disconnecting the connectors on the Vehicle Electrical System Control Module -J519-. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, REMOVING AND INSTALLING .

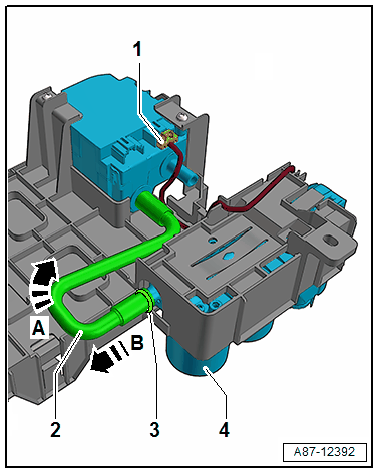

-- Remove the connector -1-.
-- Push the locking mechanism -3- in the direction of -arrow B-, and remove the hose -3- from the Fragrance Diffuser System Functional Unit -GX43- -4-.
-- Turn the hose -2- 90° in the direction of -arrow A-.

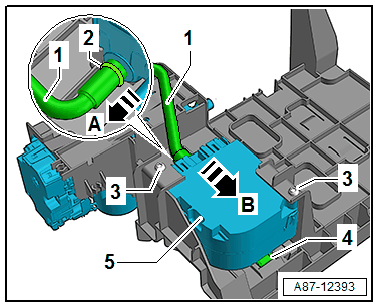

-- If equipped, remove the bolts -3-.
-- Press the locking mechanism -4- and push the Fragrance Diffuser System Control Module -J1101- with Fragrance Diffuser System Blower -V686- -3- out in direction of -arrow B-.
-- If necessary, press the locking mechanism -2- in the direction of -arrow A- and at the same time, remove the hose -1- from the Fragrance Diffuser System Control Module -J1101- with Fragrance Diffuser System Blower - V686- -5-.
