Camshaft Position Sensor, Removing And Installing: Removing

-- Depending on the model preliminary work may be required. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .

-- If necessary, push the upper section of the noise insulation carefully to the side.

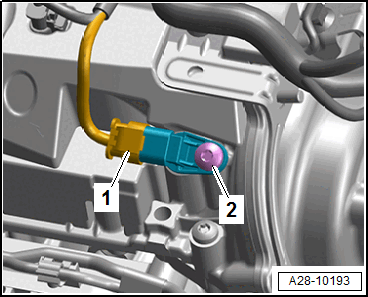

-- Remove the bolt -2- and the camshaft position sensor (shown on Camshaft Position Sensor 2 -G163-).

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.
