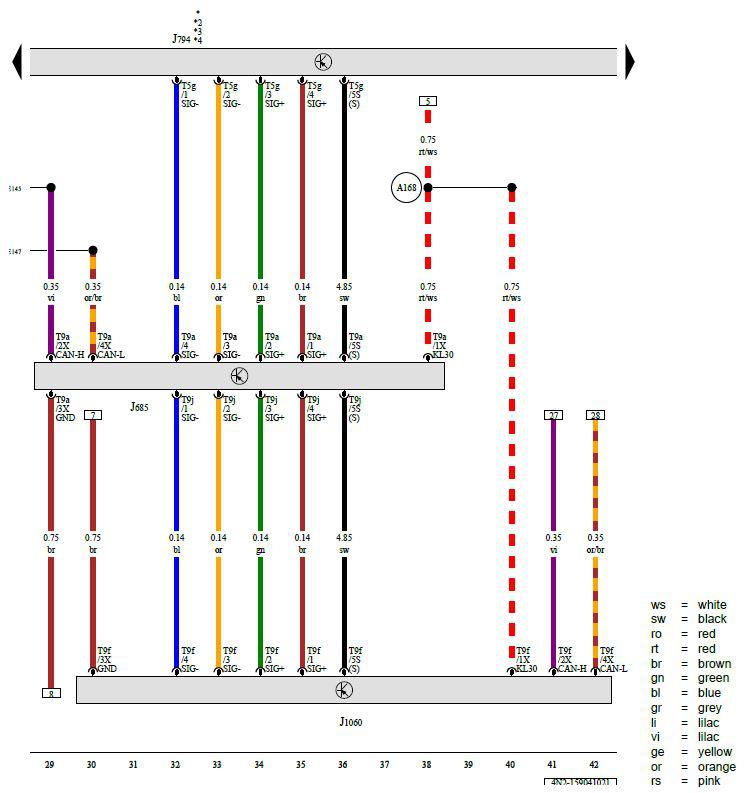

Front Information Display Control Head, Information Electronics Control Module 1, Front Information Display Control Head 2

Courtesy of AUDI OF AMERICA, LLC

J685 -  Front Information Display Control Head

J794 -  Information Electronics Control Module 1

J1060 -  Front Information Display Control Head 2

T5g -  5-Pin Connector, Black

T9a -  9-Pin Connector, Black

T9f -  9-Pin Connector, White

T9j -  9-Pin Connector, White

A168 -  Positive Connection 4 (30a) (in Instrument Panel Wiring Harness)

E145 -  Connection 1 (CAN Bus Information Electronics Control Module 1, High)

E147 -  Connection 1 (CAN Bus Information Electronics Control Module 1, Low)

* -  Refer to Applicable Sound System Wiring Diagram

*2 -  Refer to Applicable Communication Wiring Diagram

*3 -  Refer to Applicable Peripheral Camera Wiring Diagram

*4 -  Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
