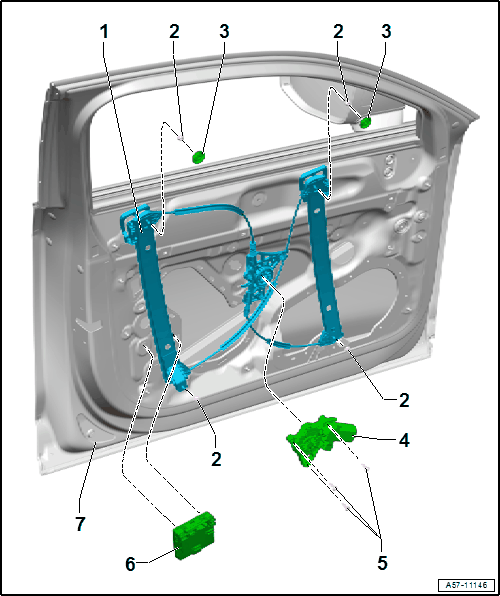

Overview - Window Regulator

Courtesy of AUDI OF AMERICA, LLC

Window Regulator
- Removing and Installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Nut
- 7.5 Nm
Cap
Window Regulator Motor
- Driver Window Regulator Motor -V147-, Front Passenger Window Regulator Motor -V148-
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- thread cutting
- Position and install by hand
- 3.5 Nm
Door Control Module
- Driver Door Control Module -J386-, Front Passenger Door Control Module -J387-
- Removing and Installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
Door
- Overview. Refer to OVERVIEW - DOOR .
