Left And Right Front Bass Speaker -R21- / -R23-, Removing And Installing, 9VD+EP0: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

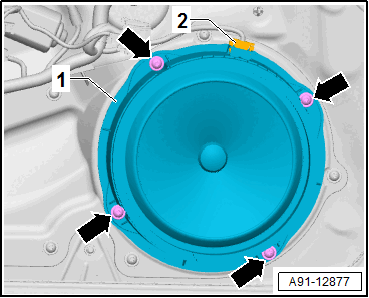

-- Release and disconnect the connector -2- from the Left Front Bass Speaker -R21- -1-.

GWWA91-12877Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -arrows- (quantity: 4) from the Left Front Bass Speaker -R21- -1-.

-- Remove the Left Front Bass Speaker -R21- -1- from the door.
