Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING: Removing

Courtesy of AUDI OF AMERICA, LLC

For Vehicles with V8 Engine or High-Voltage System:

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING

For All Other Vehicles:

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

Continuation for All Vehicles:

-- Clean and dry the control module near the connector.

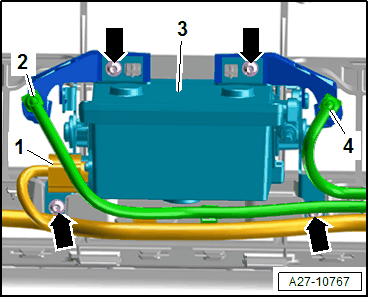

-- Disconnect the connector -1-.

-- Remove the screws -arrows-.

-- Remove the laser distance regulation control module -3- rearward from the bumper cover.

-- Remove the washer nozzle bracket with the washer fluid hoses -2 and 4- still connected upward from the laser distance regulation control module.

-- Remove the laser distance regulation control module.
