Left And Right Rear Midrange Speaker 2 -R341- / -R340-, Removing And Installing, 8RF: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the entire headliner (refer to HEADLINER, REMOVING AND INSTALLING ) and place it at the front on the instrument panel.

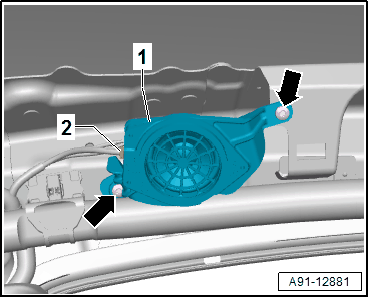

-- Release and disconnect the connector -2- from the Left Rear Midrange Speaker 2 -R341- -1-.

GWWA91-12881Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -arrows- from the Left Rear Midrange Speaker 2 -R341- -1-.

-- Remove the Left Rear Midrange Speaker 2 -R341- -1-.
