Left And Right Front Treble Speaker -R20- / -R22-, Removing And Installing, 9VD/9VS: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the speaker trim on the driver side/front passenger side. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .

-- Remove the bolts -1- on the Left Front Treble Speaker -R20- -2- and then remove the Left Front Treble Speaker -R20- -2- upward from the centering pins -3-.

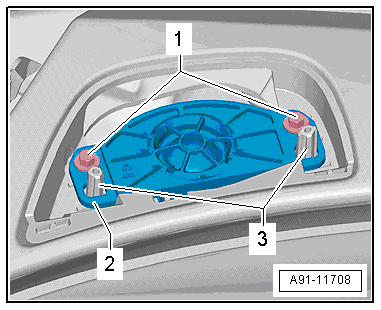

Fig 1: Locating Screws -1- On Left Front Treble Speaker -R20- -2- And Remove Left Front Treble Speaker -R20- -2- Upward From Centering Pins -3-

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector from the Left Front Treble Speaker -R20- -2-.
