Overview - Steering Gear: Notes

Steering Gear

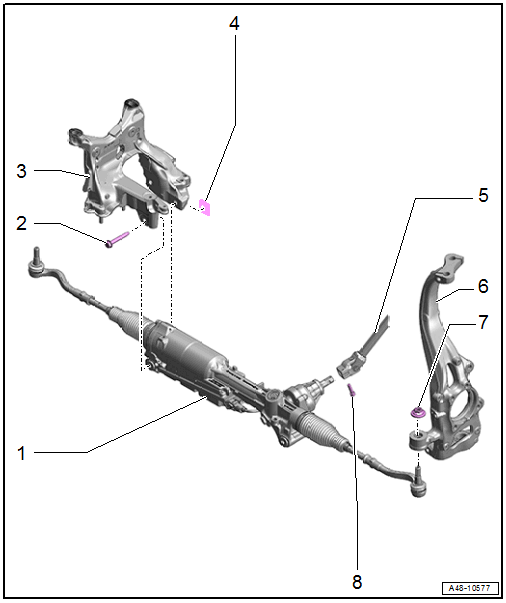

Fig 1: Exploded View Of Steering Gear

Courtesy of AUDI OF AMERICA, LLC

1. Steering Gear with Tie Rods
   • With integrated Power Steering Control Module -J500-
   • The Power Steering Control Module -J500- cannot be replaced separately if faulty replace the steering gear.
   • Removing and installing. Refer to STEERING GEAR, REMOVING AND INSTALLING .
   • Servicing. Refer to Steering Gear, Tie Rods .
2. Bolt
   • 80 Nm +180°
   • Replace after removing.
3. Subframe
4. Nut
   • Replace after removing.
   • Pushed into the subframe
5. Steering Intermediate Shaft
   • Removing and installing. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .
6. Wheel Bearing Housing
   • Removing and installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
7. Nut
   • 140 Nm
   • Replace after removing.
   • Remove the adhesive residue from the pin threads after removing
8. Bolt
   • Tightening specification -item 11-  OVERVIEW - STEERING COLUMN, MANUAL => List Item: Bolt
