Front Seat Switch/Switch Module, Removing And Installing: Removing

WARNING: This page is about a different car, the 2021 Audi SQ7, 2021 Audi Q7, 2020 Audi SQ7, and 2020 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the seat side trim on the side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

Equipped on some models:

Courtesy of AUDI OF AMERICA, LLC

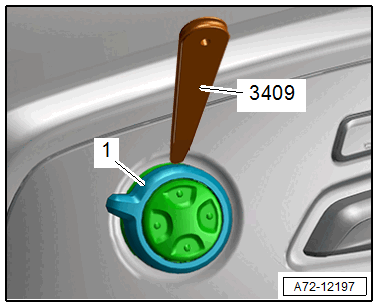

-- Carefully unclip the rocker -1- from the switch module using the :3409 .

Driver Seat Lumbar Support Adjustment Switch - E176- / Front Passenger Seat Lumbar Support Adjustment Switch -E177-

Fig 1: Bolts & And Switch Module

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and switch -2-.

Driver Seat Switch Module -E663- / Front Passenger Seat Switch Module - E664-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the switch module -1-.
