Overview - Windshield Projection (Head-Up Display)

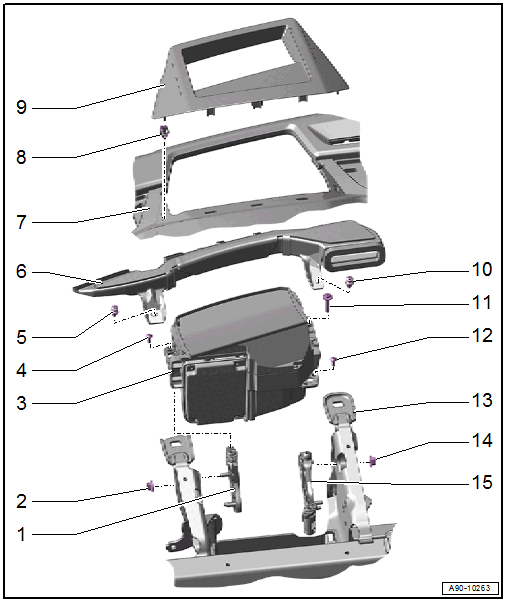

Fig 1: Exploded View Of Windshield Projection (Head-Up Display)

Courtesy of AUDI OF AMERICA, LLC

1. Exterior Bracket
   • For windshield projection control module
   • Must not be removed
2. Nut
   • Must not be loosened
   • Quantity: 3
3. Windshield Projection Head Up Display Control Module -J898-
   • Removing and Installing. Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .
4. Bolt
   • Tightening sequence. Refer to Fig 2.
   • Replace after removing
   • Quantity: 2
5. Expanding Rivet
   • For air duct
6. Air Duct
   • For windshield projection control module
7. Instrument Panel
8. Clip
9. Upper Cover
   • Removing and Installing. Refer to OVERVIEW - INSTRUMENT PANEL
10. Expanding Rivet
    • For air duct
11. Bolt
    • Tightening Specifications and Sequence. Refer to Fig 2.
12. Bolt
    • Tightening Specifications and Sequence. Refer to Fig 2.
    • Replace after removing
    • Quantity: 2
13. Instrument Panel Crossmember
14. Nut
    • Must not be loosened
    • Quantity: 3
15. Interior Bracket
    • Must not be removed
    • For windshield projection control module

Windshield Projection Head Up Display Control Module - Tightening Specification and Sequence

Fig 2: Windshield Projection Head Up Display Control Module - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in the sequence shown.

1. 5.5 Nm
2. 4 Nm
3. 4 Nm
