Home >> Audi >> 2021 >> S7 Premium Plus >> Repair and Diagnosis (Single Page) >> Electrical >> Wiring Diagrams >> Wiring Diagram [DKMB] >> Wiring Diagrams >> Brake Pedal Switch, Abs Control Module, Fuel Pump Control Module, Engine/Motor Control Module, Exhaust Door Control Unit 2 >> Notes

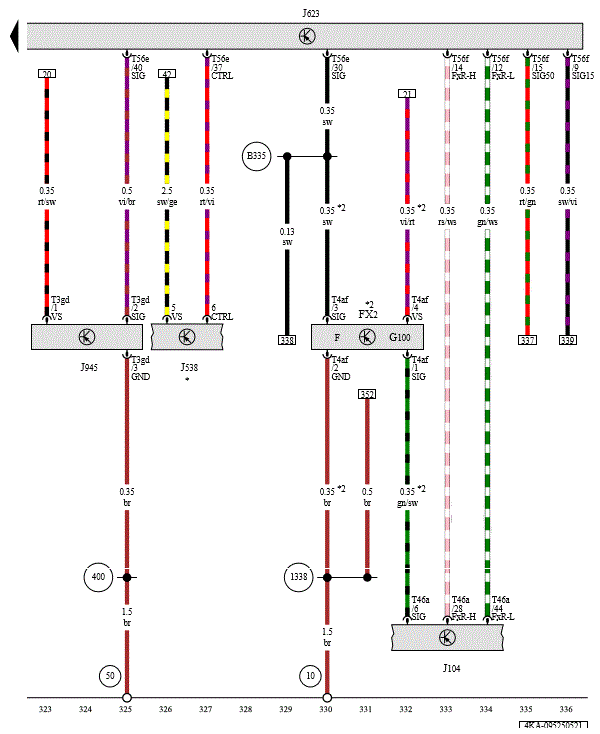

Brake Pedal Switch, Abs Control Module, Fuel Pump Control Module, Engine/Motor Control Module, Exhaust Door Control Unit 2: Notes

G005894367

Courtesy of AUDI OF AMERICA, LLC
