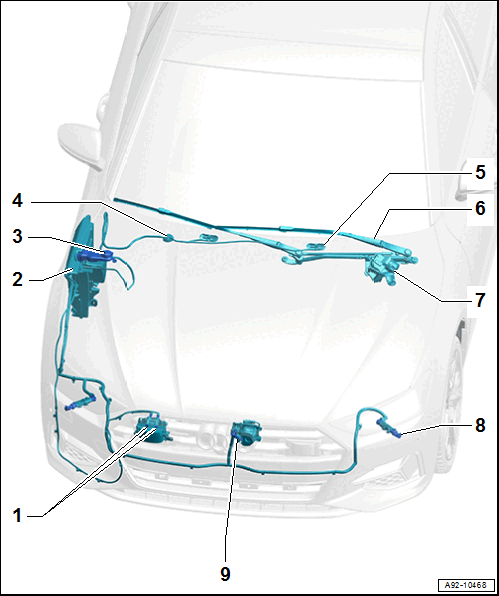

Component Location Overview - Windshield Wiper System
WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.
- Spray Nozzles
- For Laser Distance Regulation Control Module -J1122-
- Different component locations
- Overview - Auxiliary Washer System, A6. Refer to Auxiliary Washer System, A6 .
- Overview - Auxiliary Washer System, A7 Sportback. Refer to Auxiliary Washer System, A7 Sportback .
- Washer Fluid Reservoir
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Filler Neck
- For the washer fluid reservoir
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Grommet
- Equipped on some models.
- For the washer fluid hose in the front lid
- Washer Nozzle
- Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
- Windshield Wiper Arm
- Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
- Windshield Wiper Motor -V-
- With the Wiper Motor Control Module -J400-
- Overview. Refer to OVERVIEW - WINDSHIELD WIPER SYSTEM .
- Headlamp Washer System Washer Nozzle
- Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
- Night Vision System Camera -R212- Washer Nozzle
- Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
