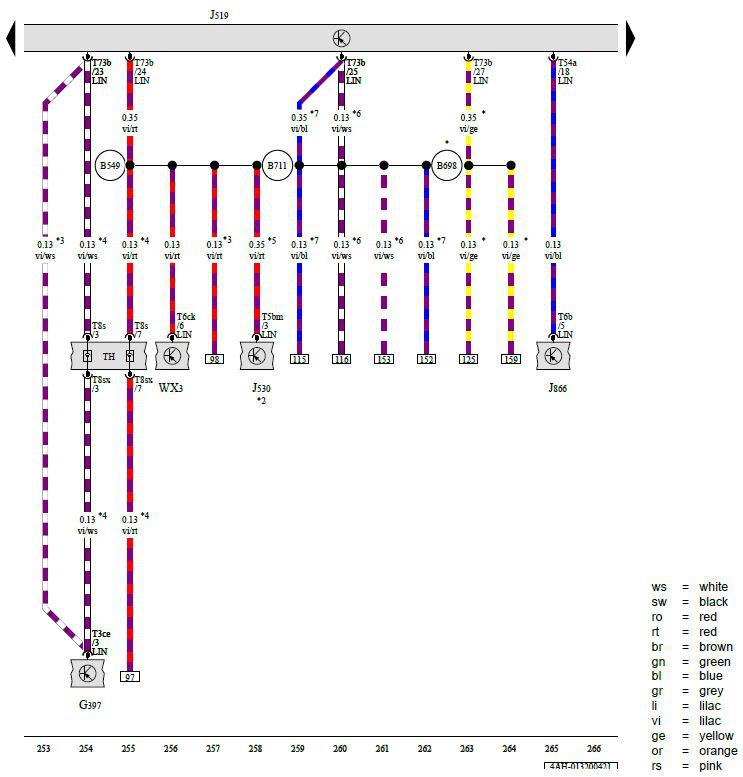

Rain/Light Recognition Sensor, Vehicle Electrical System Control Module, Garage Door Opener Control Module, Power Adjustable Steering Column Control Module, Front Roof Module
G397 - Rain/Light Recognition Sensor
J519 - Vehicle Electrical System Control Module
J530 - Garage Door Opener Control Module
J866 - Power Adjustable Steering Column Control Module
T3ce - 3-Pin Connector, Black
T5bm - 5-Pin Connector, Black
T6b - 6-Pin Connector, Brown
T6ck - 6-Pin Connector, Black
T8s - 8-Pin Connector, Black
T8sx - 8-Pin Connector, Black
T54a - 54-Pin Connector, Black
T73b - 73-Pin Connector, Black, Black
TH - Coupling Point on Roof
WX3 - Front Roof Module
B549 - LIN Bus Connection 2 (in Main Wiring Harness)
B698 - LIN Bus Connection 3 (in Main Wiring Harness)
B711 - LIN Bus Connection 6 (in Main Wiring Harness)
* - For Vehicles with Ambient Lighting
*2 - Refer to Applicable Wiring Diagram for the Garage Door Opener
*3 - For Vehicles Without Driver Assistance Systems Front Camera
*4 - For Vehicles with Driver Assistance Systems Front Camera
*5 - For Vehicles with Garage Door Opener
*6 - Omitted as a Running Change
*7 - Running Change
