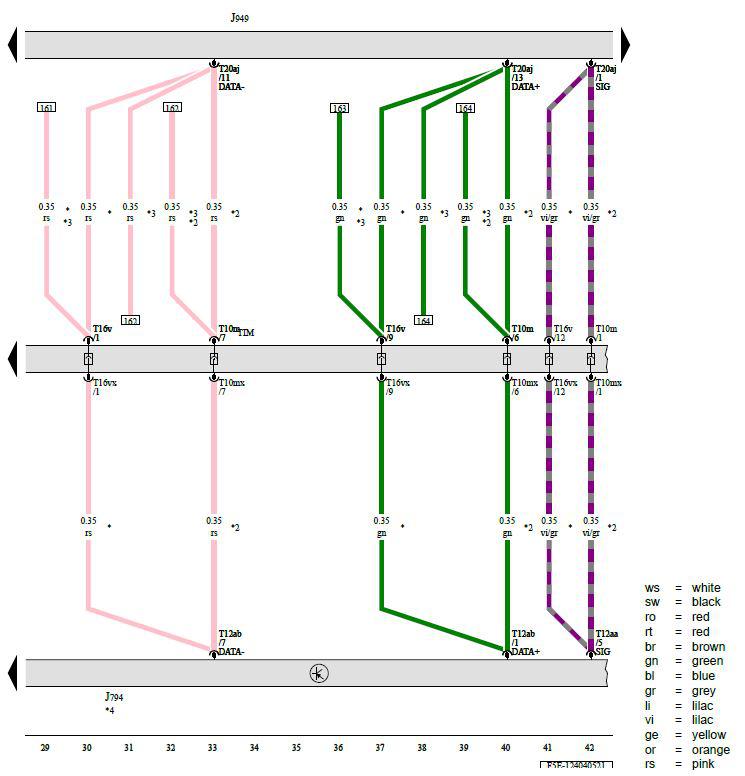

Information Electronics Control Module 1, Control Module for Emergency Call Module and Communication Unit
J794 - Information Electronics Control Module 1
J949 - Control Module for Emergency Call Module and Communication Unit
T10m - 10-Pin Connector, Black
T10mx - 10-Pin Connector, Black
T12aa - 12-Pin Connector, Blue
T12ab - 12-Pin Connector, Green
T16v - 16-Pin Connector, Brown
T16vx - 16-Pin Connector, Brown
T20aj - 20-Pin Connector, Naturally Cloudy
TIM - Coupling Point in Interior, Center
* - From December 2019
*2 - Through November 2019
*3 - For Vehicles with Bang & Olufsen Sound System
*4 - Refer to Applicable MMI (Information Electronics) Wiring Diagram
