Special Tools

Special tools and workshop equipment required

Used Oil Collection and Extraction Unit:SMN372500

Fig 1: Identifying Used Oil Collection And Extraction Unit
Courtesy of AUDI OF AMERICA, LLC
Tensioning Strap:T10038

Fig 2: Identifying Tensioning Strap T10038
Courtesy of AUDI OF AMERICA, LLC
Engine/Gearbox Jack - Gearbox Support:T10337

Fig 3: Engine/Gearbox Jack - Gearbox Support T10337
Courtesy of AUDI OF AMERICA, LLC

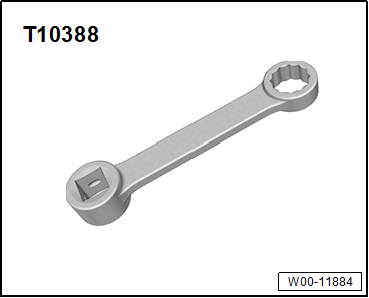

Ring Wrench - 16mm:T10388

Courtesy of AUDI OF AMERICA, LLC
Engine Support :T10533

Fig 4: Engine Support : T10533
Courtesy of AUDI OF AMERICA, LLC
Crankshaft Socket:T40058

Fig 5: Adapter (Socket) T140058
Courtesy of AUDI OF AMERICA, LLC
Clutch Module Transportation Lock:T40170

Fig 6: Clutch Module Transportation Lock T40170
Courtesy of AUDI OF AMERICA, LLC
Gearbox Support:T40173

Fig 7: Gearbox Support T140173
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1332 Insert - Ring Wrench - 16mm:VAG1332/14

Fig 8: Identifying Ring Spanner Insert AF 16 VAG 1332/14
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1410:VAG1410

Fig 9: Identifying Torque Wrench 1410 VAG1410
Courtesy of AUDI OF AMERICA, LLC
Engine and Gearbox Bracket:VAS6095A

Fig 10: Engine And Transmission Holder
Courtesy of AUDI OF AMERICA, LLC
Shop Crane:VAS6100

Fig 11: Identifying Shop Crane
Courtesy of AUDI OF AMERICA, LLC
Coolant Collection System:VAS5014 or Shop Crane - Drip Tray:VAS6208

Fig 12: Identifying Drip Tray
Courtesy of AUDI OF AMERICA, LLC
Oil Filler:VAS6262A

Fig 13: Identifying Oil Filler Adapter
Courtesy of AUDI OF AMERICA, LLC
Oil Filler - Jointed Hose:VAS6262/5
If necessary, Oil Filler - Adapter 6:VAS6262/6

Fig 14: Adapter For Oil Filling 6 VAS 6262/6
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers:VAS6362

Fig 15: Hose Clip Pliers
Courtesy of AUDI OF AMERICA, LLC
Engine and Gearbox Jack:VAS6931

Fig 16: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of AUDI OF AMERICA, LLC
Holding Plate:VW309A

Fig 17: Holding Plate VW 309
Courtesy of AUDI OF AMERICA, LLC
Engine Support Bridge:10-222A

Fig 18: Engine Support Bridge 10-222A
Courtesy of AUDI OF AMERICA, LLC
Hose Clamps - Up To 25 mm:3094

Fig 19: Hose Clamps
Courtesy of AUDI OF AMERICA, LLC
Hook And Support Tool:3311 with Hook And Support Tool - Bolt:3311/1

Fig 20: Hook And Support Tool 3311 With Bolt 3311/1
Courtesy of AUDI OF AMERICA, LLC
Trim Removal Wedge:3409

Fig 21: Identifying Trim Removal Wedge
Courtesy of AUDI OF AMERICA, LLC
