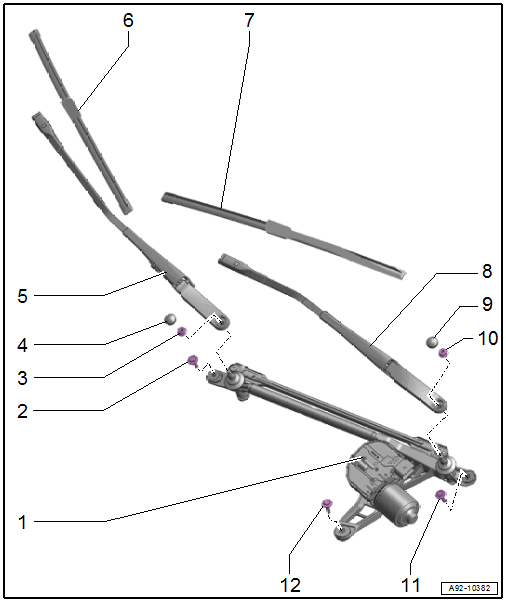

Overview - Windshield Wiper System
WARNING: This page is about a different car, the 2022 Audi S4 and 2022 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Windshield Wiper Motor -V-
- With the Wiper Motor Control Module -J400-
- Removing and Installing. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .
- Bolt
- Tightening sequence. Refer to Fig 2.
- Nut
- 22 Nm
- Cap
- Front Passenger Side Windshield Wiper Arm
- There are different lengths. Refer to the Parts Information.
- Removing and Installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Front Passenger Side Wiper Blade
- There are different lengths. Refer to the Parts Information.
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Wiper Blade
- There are different lengths. Refer to the Parts Information.
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
- Driver Side Windshield Wiper Arm
- There are different lengths. Refer to the Parts Information.
- Removing and Installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
- Cap
- Nut
- 22 Nm
- Bolt
- Tightening specification and sequence. Refer to Fig 2.
- Bolt
- Tightening specification and sequence. Refer to Fig 2.

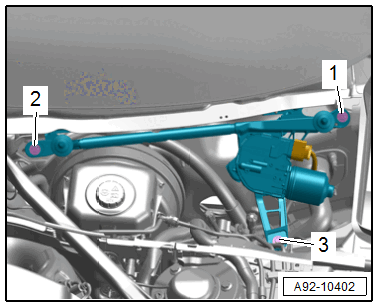

Windshield Wiper Motor - Tightening Specification and Sequence
-- Tighten the bolts in the steps shown in the sequence:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 to 3- | Install by hand all the way |
| 2. | -1 to 3- | 8 Nm |
