Ignition Coil, Removing And Installing: Removing

All except Audi Q7/Q8:

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

Audi Q7/Q8:

Courtesy of AUDI OF AMERICA, LLC

Refer to the appropriate service information.

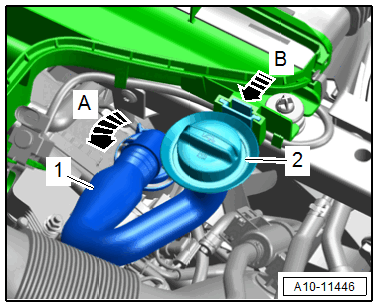

-- Remove the cap -2-.

-- Release the retainer in direction of -arrow B- and remove the oil filler tube -1- upward from the air filter lower section.

-- Turn the oil filler tube counter-clockwise in direction of -arrow A- and remove it.

-- Close the oil filler tube with the cap.

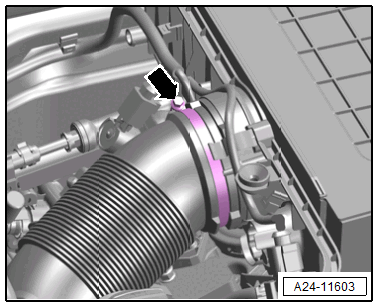

-- Loosen the hose clamp -arrow-, remove the air duct pipe from the air filter housing and push it slightly to the side.

Courtesy of AUDI OF AMERICA, LLC

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

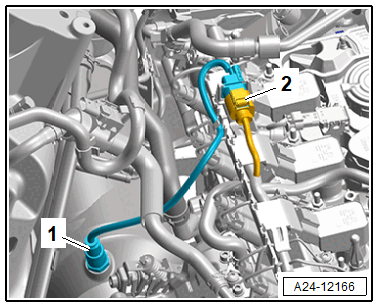

-- Remove and disconnect the connector -2- for the Oxygen Sensor 1 Before Catalytic Converter -GX10- from the bracket.

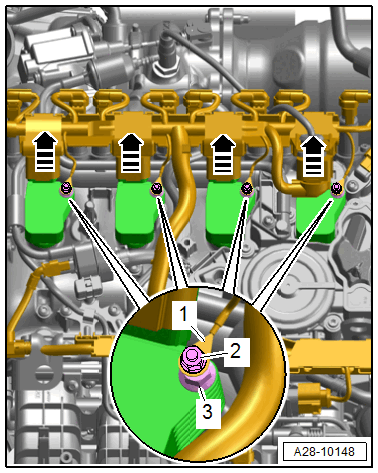

-- Remove the nut -2-, free up the ground wire -1- and remove the double bolt -3- from underneath.

Courtesy of AUDI OF AMERICA, LLC

-- Release the connectors and simultaneously disconnect them from the ignition coils in the direction of -arrow-.

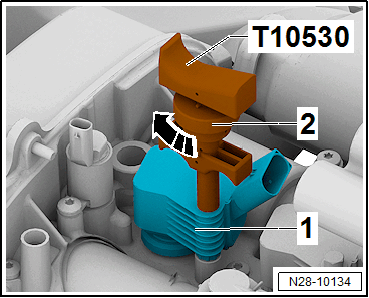

-- Insert the Puller: T10530  in the ignition coil opening -1-.

Fig 1: Identifying Puller T10530

Courtesy of AUDI OF AMERICA, LLC

-- Turn the knurled nut -2- clockwise in direction of -arrow- until the puller is clamped.

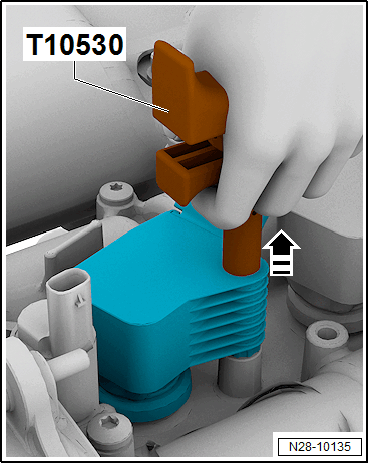

-- Remove the ignition coil carefully vertically in direction of -arrow- using the Puller: T10530  .

Fig 2: Identifying Puller T10530

Courtesy of AUDI OF AMERICA, LLC
