Engine, Removing, AUDI A4/A5

Special tools and workshop equipment required

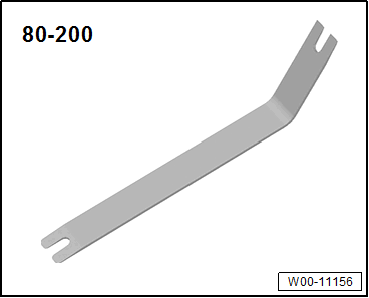

• Pry Lever: 80-200
  Fig 1: Identifying Pry Lever

  Courtesy of AUDI OF AMERICA, LLC
• Engine Bung Set: VAS6122
  Fig 2: Engine Bung Set

  Courtesy of AUDI OF AMERICA, LLC

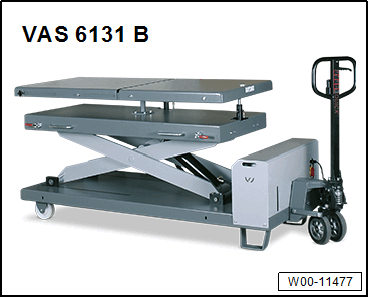

• Scissor Lift Table: VAS6131B
  Fig 3: Scissor Lift Table (VAS6131B)

  Courtesy of AUDI OF AMERICA, LLC

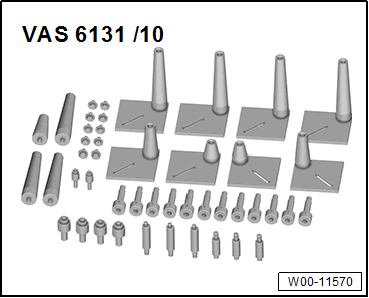

• Scissor Lift Table - Audi Set: VAS6131/10
  Fig 4: Identifying Scissor Lift Table - Audi Set VAS 6131/10

  Courtesy of AUDI OF AMERICA, LLC
• (Quantity: 2) Scissor Lift Table - A8 Set - Mounting: VAS6131/11-4  from Scissor Lift Table - A8 Set: VAS6131/11  , not illustrated
• (Quantity: 2) Scissor Lift Table - A6 Set - Mounting Pins: VAS6131/12-2  from Scissor Lift Table - A6 Set: VAS6131/12  , not illustrated

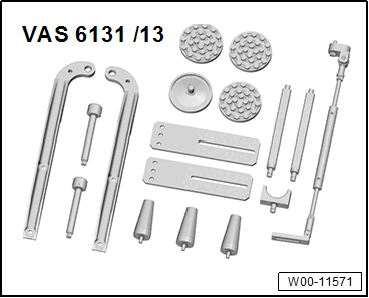

• (Quantity: 2) Threaded spindle from the Scissor Lift Table - Q7 Set: VAS6131/13
  Fig 5: Identifying Scissor Lift Table - Q7 Set VAS 6131/13

  Courtesy of AUDI OF AMERICA, LLC
• Shop Crane - Drip Tray: VAS6208
  Fig 6: Identifying Drip Tray

  Courtesy of AUDI OF AMERICA, LLC

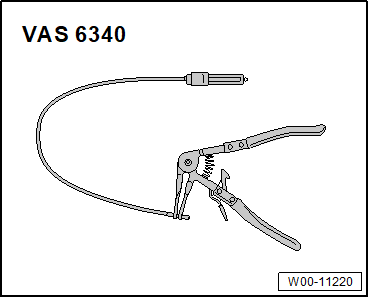

• Hose Clip Pliers: VAS6340
  Fig 7: Hose Clip Pliers VAS6340

  Courtesy of AUDI OF AMERICA, LLC

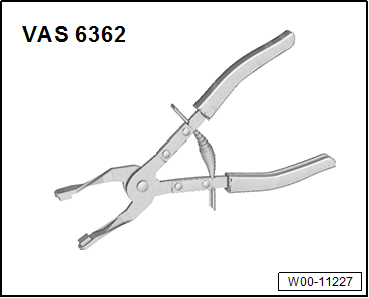

• Hose Clip Pliers: VAS6362
  Fig 8: Hose Clip Pliers

  Courtesy of AUDI OF AMERICA, LLC
• Protective Eyewear
• Safety Gloves

Procedure

• With the lock carrier installed, the engine is removed downward with the transmission.
• During installation, all cable ties must be installed at the same location.
• During installation, all heat shield boots must be installed at the same location.
• Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
• All bolts on suspension components with bonded rubber bushings must be tightened in curb weight position (no load).
• Bonded rubber bushings have a limited range of rotation. Axle components with bonded rubber bushings must be brought into the position they will be in when driving before they are tightened (curb weight position). Otherwise, the bonded rubber bushing will be under stress, which will reduce the service life.

-- Before starting the procedure, determine the curb weight position. Refer to WHEEL BEARING, LIFTING TO CURB WEIGHT POSITION, VEHICLES WITH COIL SPRING .

• The electro-mechanical parking brake must be released before disconnecting battery so the driveshaft can be rotated to remove it.

-- Position the wheels so that they are straight.

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

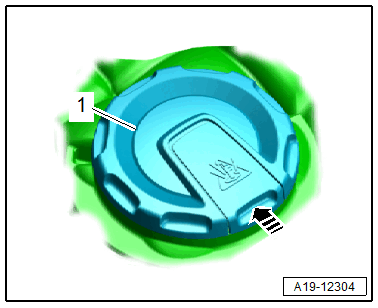

-- Open the cover -1- for the coolant expansion tank by releasing the catch -arrow-.

-- Remove the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .

-- Remove the front wheels. Refer to the appropriate Service Information .

-- Remove the left and right wheel spoiler and loosen the right front wheel housing liners. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Loosen the left front wheel housing liner in the front area and push slightly toward the rear. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the noise insulations. Refer to OVERVIEW - NOISE INSULATION .

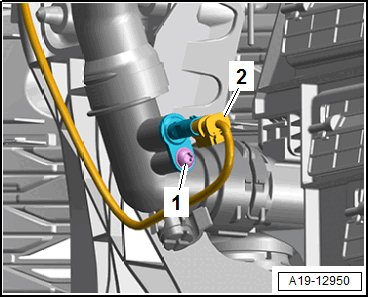

-- Disconnect the connector -2- for the Engine Coolant Temperature Sensor on Radiator Outlet -G83-.

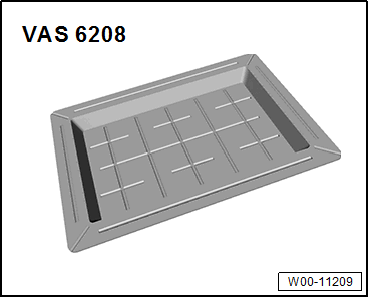

-- Place the Shop Crane - Drip Tray: VAS6208  underneath.

Courtesy of AUDI OF AMERICA, LLC

-- Lift the clip -2-, remove the coolant hose and allow the coolant to drain.

-- Free up the coolant hose.

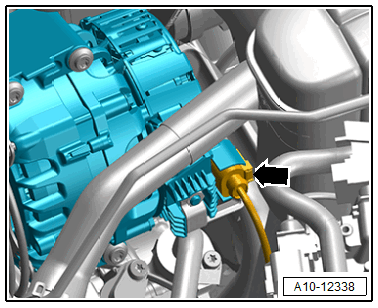

-- Loosen the hose clamp -right arrow-, remove the coolant hose from the ATF cooler and allow the coolant to drain.

Courtesy of AUDI OF AMERICA, LLC

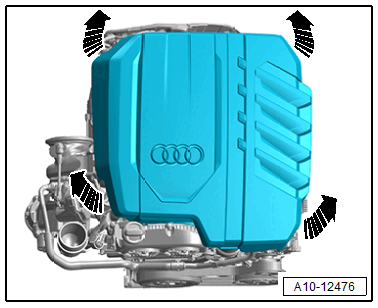

-- Carefully pull the engine cover off the retaining pins one after the other -arrows-. Do not pull sharply on the engine cover or pull it to one side.

Courtesy of AUDI OF AMERICA, LLC

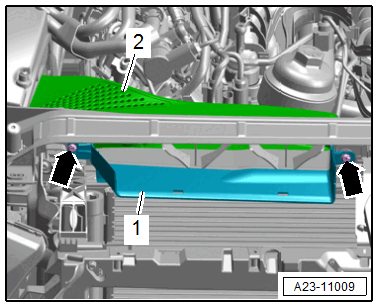

-- Remove the bolts -arrows- and the air guide -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the vacuum hose -3- without damaging it.

Courtesy of AUDI OF AMERICA, LLC

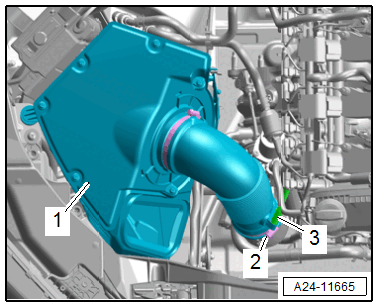

-- Loosen the hose clamp -2- and remove the air duct hose.

-- Pull the air filter housing -1- upward.

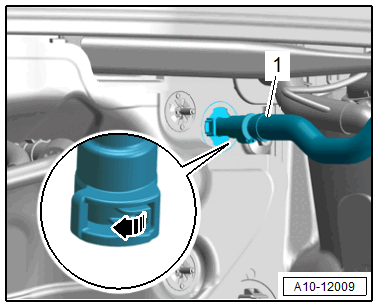

-- Disconnect the fuel hose -1-. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -2- and disconnect the hose for the EVAP system.

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set: VAS6122  .

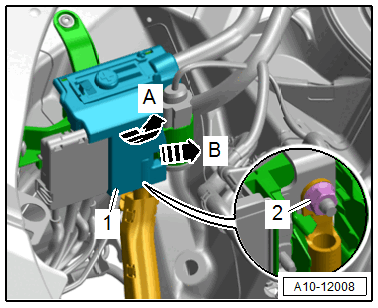

-- Release the latch -arrow B- and open the E-box -1- -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2- and free up the B+ wire.

-- Free up the upper wiring duct.

-- Open the heat shield boot.

Courtesy of AUDI OF AMERICA, LLC

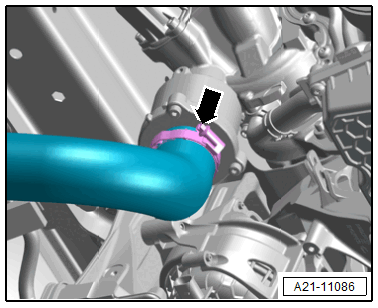

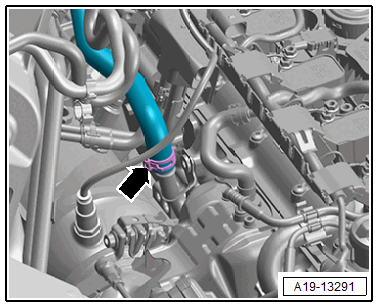

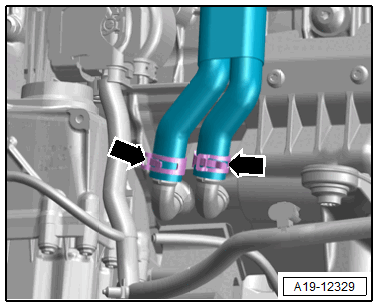

-- Loosen the hose clamp -arrow- and remove the coolant hose.

Vehicles with a particulate filter:

Courtesy of AUDI OF AMERICA, LLC

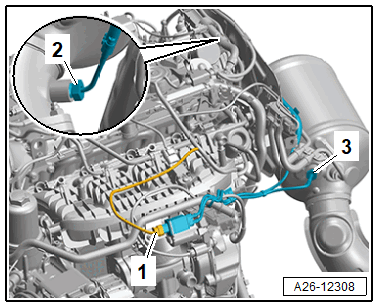

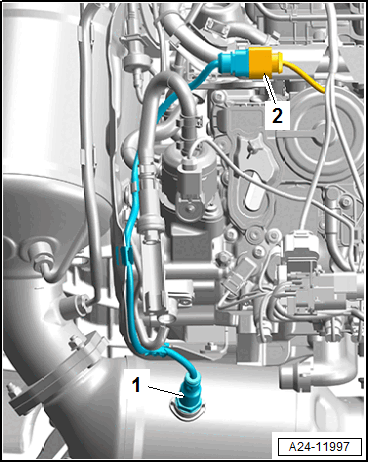

-- Disconnect the connector -1- for the Dual Exhaust Temperature Sensor 1 -GX41-.

-- If the engine and transmission are to be separated: remove the connector from the bracket and free up the wires.

-- Disconnect the connector -3- for the Particulate Filter Differential Pressure Sensor -G1037-.

-- If the engine and transmission are to be separated, remove the bolt -1- and free up the differential pressure sensor.

Continuation for All Vehicles:

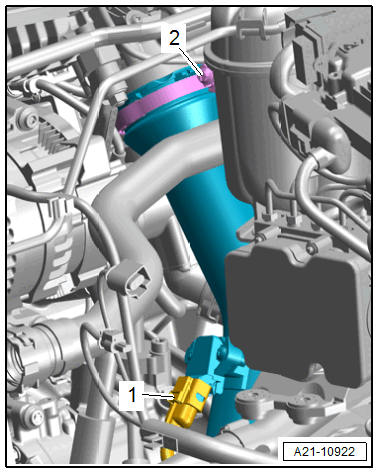

-- Disconnect the connector -2- for Oxygen Sensor 1 after Catalytic Converter -GX7- -item 1- (example illustration).

-- Disconnect the connector -2- for the Oxygen Sensor 1 Before Catalytic Converter -GX10- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- If installed, disconnect the connector -1- for the Tank Ventilation Pressure Sensor 1 -G950-, then free up the wire.

Courtesy of AUDI OF AMERICA, LLC

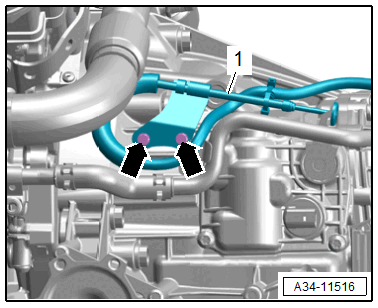

-- Free up the wiring harness.

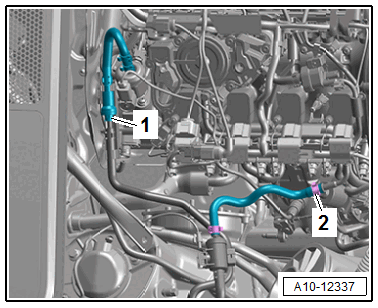

-- Lift the clamps -arrows-, remove and free up the coolant hoses.

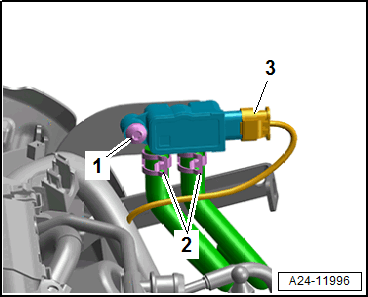

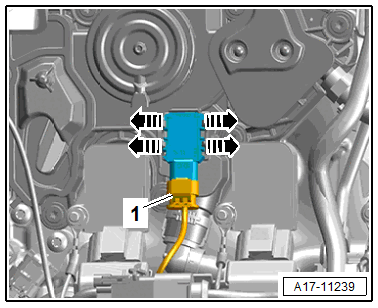

-- Disconnect the connector -1- for the Engine Coolant Level Sensor -G32-.

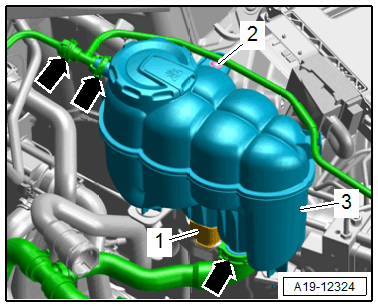

-- Remove the bolt -2- and remove the coolant expansion tank -3-.

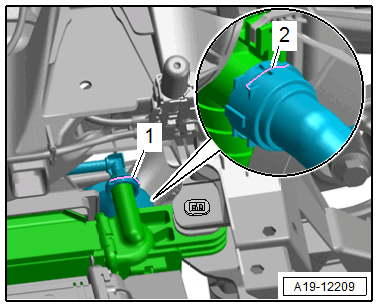

-- Lift the clip -2- and then remove the coolant hose from the top of the radiator.

Courtesy of AUDI OF AMERICA, LLC

-- Lift the clamp -1- and remove the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

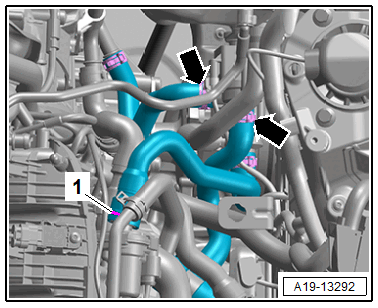

-- Loosen the hose clamps -arrows- and remove the coolant hoses.

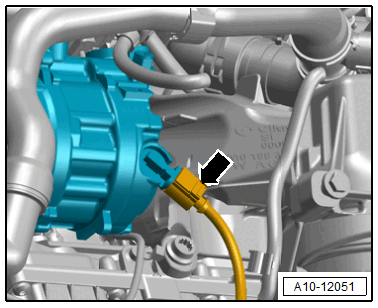

-- Disconnect the connector -arrow- for the Starter Generator -C29-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- for the Charge Air Pressure Sensor -G31-.

Courtesy of AUDI OF AMERICA, LLC

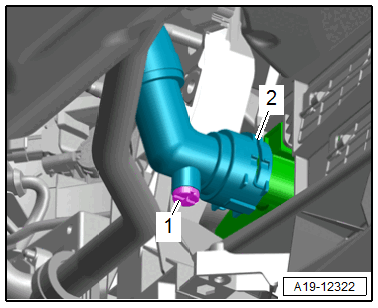

-- Loosen the screw-type clamp -2- and remove the air duct pipe from the Throttle Valve Control Module -GX3-.

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set: VAS6122  .

-- Release the retainer -arrow- and remove the vacuum hose -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the connector -2- from the bracket and disconnect it.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the Engine/Motor Control Module -J623-.

-- Free up the wiring harness and place on the engine.

Vehicle without particulate filter:

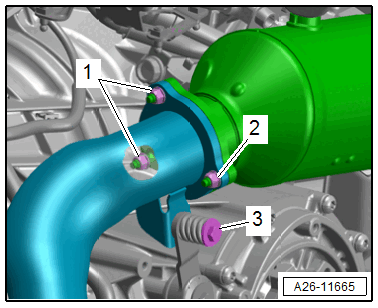

-- Remove the nuts -1- from the front muffler accessible from the top.

-- Remove the nut -2- and bolt -3- for the front muffler.

Vehicles with a particulate filter:

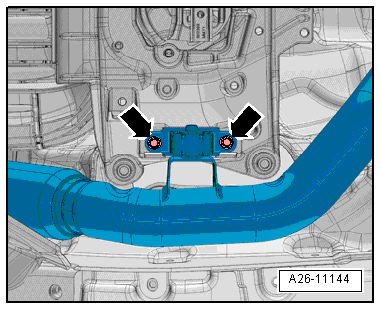

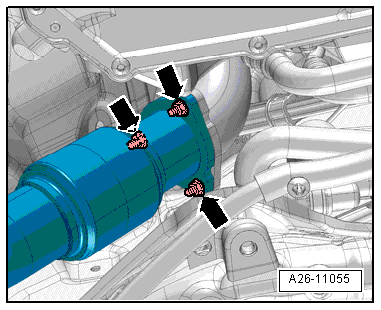

-- Remove the nuts -arrows- from the front muffler.

Continuation for All Vehicles:

-- Remove the front muffler bolts -arrows-. (Shown on the right.)

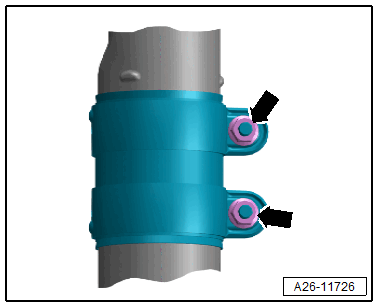

-- Loosen the clamping sleeve -arrows- and push toward the rear.

-- Remove the front muffler.

AWD Vehicle:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the driveshaft. Refer to DRIVESHAFT, REMOVING AND INSTALLING .

-- Disconnect the connector -arrow- for the All-Wheel Drive Control Module -J492-.

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

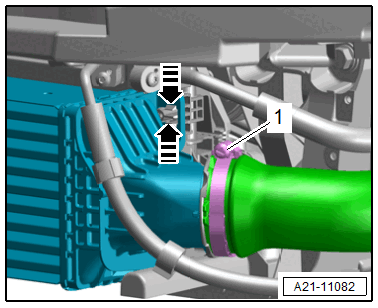

-- Loosen the left and right hose clamp -1- and remove the air duct pipe.

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set: VAS6122  .

-- Loosen the hose clamp -arrow- and remove the air duct hose at the right from the turbocharger.

Courtesy of AUDI OF AMERICA, LLC

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set: VAS6122  .

-- Remove the connector -2- from the bracket and disconnect it.

Courtesy of AUDI OF AMERICA, LLC

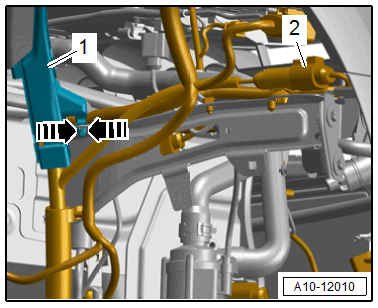

-- Release the retainers -arrows- and free up the wiring duct -1-.

-- Free up the wiring harness to the engine.

-- Remove the subframe. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .

-- Detach the left and right drive axles from the transmission. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the refrigerant lines from the A/C compressor. Refer to REFRIGERANT LINES, REMOVING AND INSTALLING AT A/C COMPRESSOR .

-- Disconnect the connector -arrow- for the A/C compressor.

Courtesy of AUDI OF AMERICA, LLC

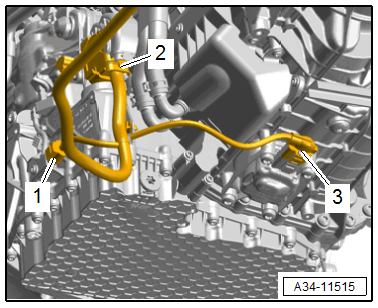

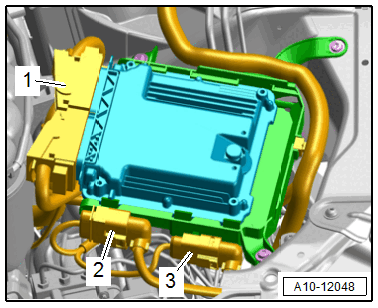

-- Disconnect the connectors and free up the wires.

Courtesy of AUDI OF AMERICA, LLC

1 -  For the Parking Lock Solenoid -N486-

3 -  For Transmission Electric Pump 2 -V553-

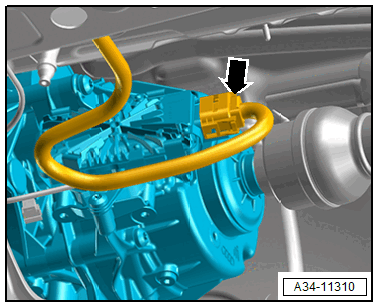

-- Disconnect the connector -2- at the transmission.

-- Remove the bolts -arrows- and free up the parking lock emergency release cable -1-.

Courtesy of AUDI OF AMERICA, LLC

Scissor Lift Table, Preparing:

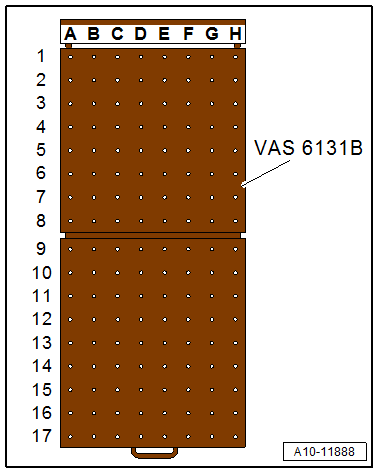

-- Equip the Scissor Lift Table: VAS6131B  as follows:

Table Coordinates	Components from Scissor Lift Table - Audi Set: VAS6131/10  , adapter from Scissor Lift Table - A8 Set - Mounting: VAS6131/11-4  , Scissor Lift Table - A6 Set - Mounting Pins: VAS6131/12-2  and the Threaded Spindle from Scissor Lift Table - Q7 Set: VAS6131/13
B7	/10-1	/12-2	Threaded spindle from Scissor Lift Table - Q7 Set: VAS6131/13	/11-4
G7	/10-1	/12-2	Threaded spindle from Scissor Lift Table - Q7 Set: VAS6131/13	/11-4
C15	/10-1	/10-2	/10-5	/10-6
F15	/10-1	/10-3	/10-5	/10-7

-- Secure the mounting elements to the scissor lift table by hand.

-- Position the Scissor Lift Table: VAS6131B  horizontally.

• Note the bubble level (sight glass) on support platform.

-- Guide the Scissor Lift Table: VAS6131B  under the engine/transmission assembly.

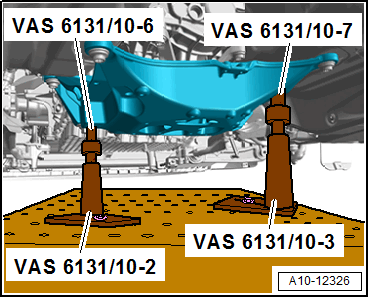

-- Install the mounting elements from the Scissor Lift Table - Audi Set: VAS6131/10  as shown on the tunnel crossmember.

Courtesy of AUDI OF AMERICA, LLC

-- Pay attention that the right threaded spindle is completely installed.

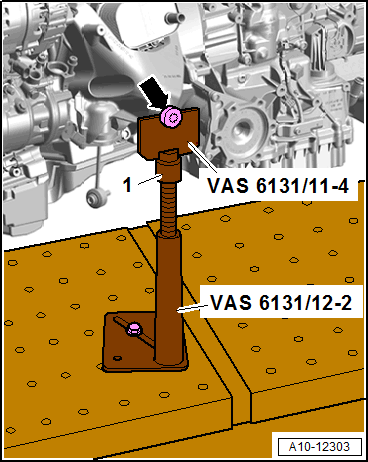

-- Position the mounting elements from Scissor Lift Table - Audi Set: VAS6131/10  , adapter from Scissor Lift Table - A8 Set - Mounting: VAS6131/11-4  , Scissor Lift Table - A6 Set - Mounting Pins: VAS6131/12-2  and the Threaded Spindle -1- from the Threaded Spindle from Scissor Lift Table - Q7 Set: VAS6131/13  to the left and right as shown.

Courtesy of AUDI OF AMERICA, LLC

-- Install the bolt -arrow- for the engine mount all the way on the adapter.

-- Rotate the remaining mounting element spindles upward until all the mounting pins come in contact with the mounting points.

-- Tighten the mounting element base plates to 20 Nm on the Scissor Lift Table: VAS6131B  .

-- Disengage the Engine Support Bridge - Spindle: 10-222A/11

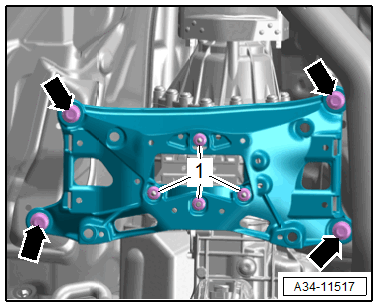

-- Remove the bolts -arrows- on the tunnel crossmember.

Courtesy of AUDI OF AMERICA, LLC

-- Lower the Scissor Lift Table: VAS6131B  with the engine/transmission assembly and remove from under the vehicle.
