Engine, Removing From Scissor Lift Table

WARNING: This page is about a different car, the 2022 Audi A4 Quattro and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Sling: 2024A

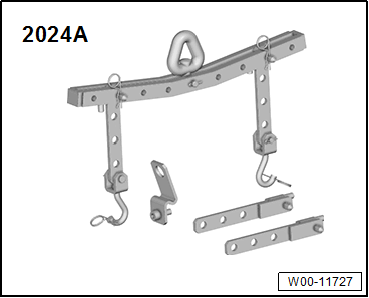

Fig 1: Engine Sling : 2024A
Courtesy of AUDI OF AMERICA, LLC
Shop Crane: VAS6100

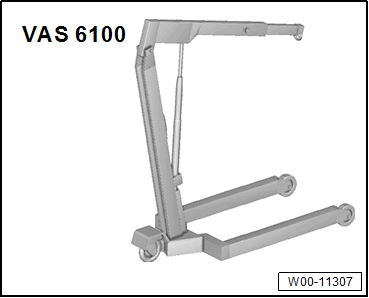

Fig 2: Identifying Shop Crane
Courtesy of AUDI OF AMERICA, LLC

Procedure

Engine/transmission assembly removed and separated on Scissor Lift Table: VAS6131B . Refer to ENGINE AND TRANSMISSION, SEPARATING .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of injury from the lifted engine/motor falling.

The possibility for parts of the body to be pinched or crushed increases.

- Secure the mounting hooks and pins on the lifting tackle with a securing pin.

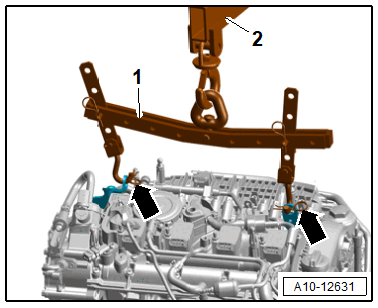

-- Engage the Engine Sling: 2024A -1- as shown on the engine lifting eye and on the Workshop Crane: VAS6100 -2-.

-- Insert the securing pins -arrows- to secure the mounting hooks and alignment pins.

CAUTION:

Risk of injury due to the engine weight shifting.

The possibility for parts of the body to be pinched or crushed increases.

- Transport the engine only without the transmission using the method described.

-- Tension the engine slightly with the shop crane, but do not lift.

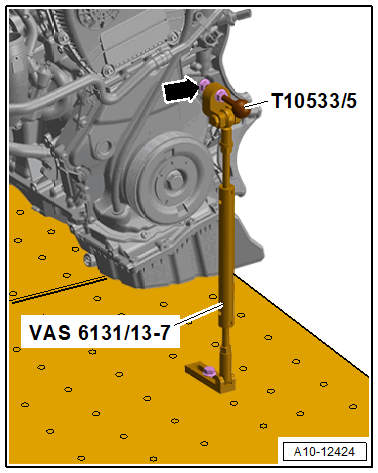

-- Remove the Articulated Joint Support: VAS6131/13-7 from the engine.

Courtesy of AUDI OF AMERICA, LLC

-- Lift the engine using the workshop crane.
