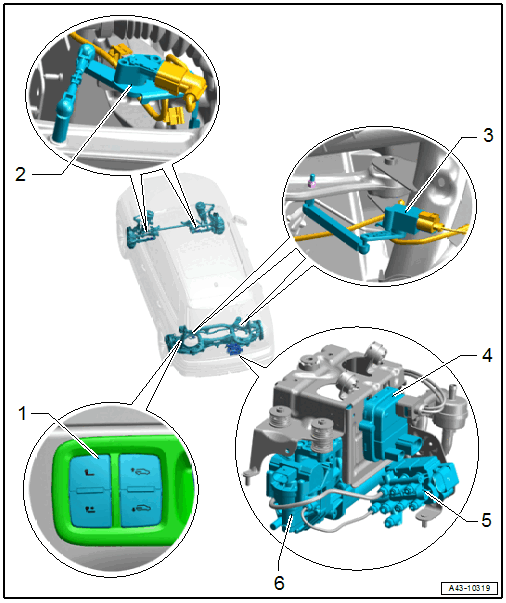

Component Location Overview - Electrical Components
- Loading Sill Lowering Control Head -E682-
- With the following integrated components
- Load Level Button -E539-
- Power Pivoting Trailer Hitch Button -E474-, equipment level
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN LUGGAGE COMPARTMENT
- With the following integrated components
- Front Level Control System Sensor
- Left Front Level Control System Sensor -G78-, Right Front Level Control Sensor -G289-
- Overview. Refer to OVERVIEW - FRONT LEVEL CONTROL SYSTEM SENSOR .
- Rear Level Control System Sensor
- Left Rear Level Control System Sensor -G76-, Right Rear Level Control System Sensor -G77-
- Overview. Refer to OVERVIEW - REAR LEVEL CONTROL SYSTEM SENSOR .
- Level Control System Compressor Electronics -J1135-
- Removing and Installing. Refer to Level Control System Compressor Electronics -J1135-, REMOVING AND INSTALLING .
- Adaptive Suspension Valve Block -NX7-
- With the following integrated components
- Level Control Pressure Sensor -G291-
- Left Front Suspension Strut Valve -N148-
- Right Front Suspension Strut Valve -N149-
- Left Rear Suspension Strut Valve -N150-
- Right Rear Suspension Strut Valve -N151-
- Level Control Accumulator Valve -N311-
- The components cannot be replaced separately
- If a components is faulty replace the adaptive suspension valve block
- Overview. Refer to OVERVIEW - AIR LINES .
- If the air line is removed from a component, check if the cutting ring is seated on the air line.
- With the following integrated components
- Level Control System Compressor Motor -V66-
- With integrated Level Control System Solenoid -N111-
- The Level Control System Solenoid - N111- cannot be replaced separately, if faulty replace the Level Control System Compressor Motor -V66-
- Overview. Refer to OVERVIEW - AIR SUPPLY UNIT .

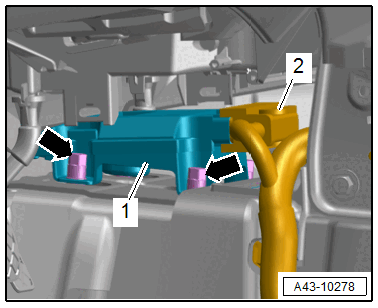

Drivetrain Control Module J775
- Component location: under the heater and A/C unit.
- Removing and Installing. Refer to Drivetrain Control Module -J775-, REMOVING AND INSTALLING .
- Tighten the left and right nuts -arrows- to 8 Nm.
