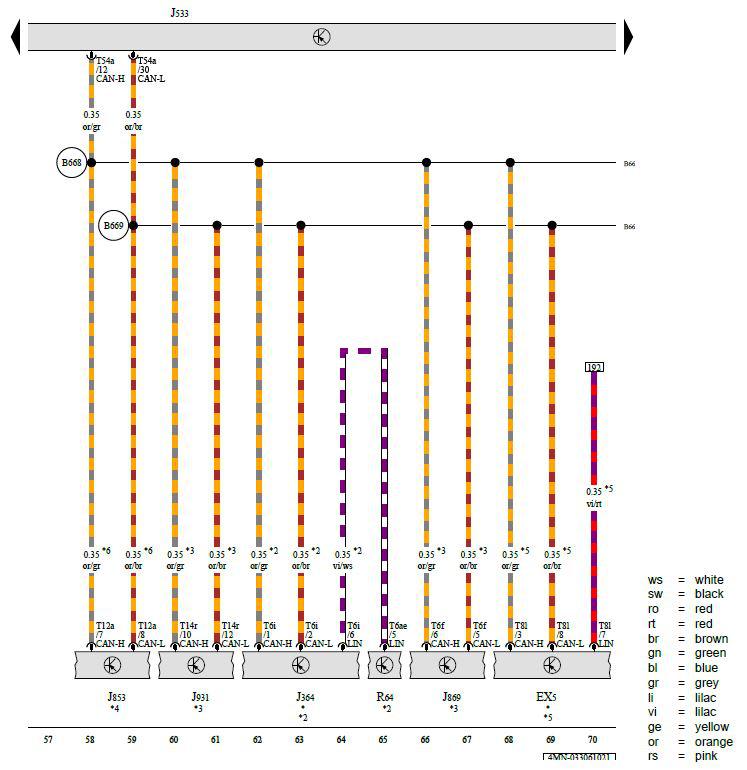

Interior Rearview Mirror, Auxiliary Heater Control Module, Data Bus on Board Diagnostic Interface, Night Vision System Control Module, Structure-Borne Sound Control Module, Assembly Mount Control Module, Parking Heater Radio Receiver
EX5 - Interior Rearview Mirror
J364 - Auxiliary Heater Control Module
J533 - Data Bus on Board Diagnostic Interface
J853 - Night Vision System Control Module
J869 - Structure-Borne Sound Control Module
J931 - Assembly Mount Control Module
R64 - Parking Heater Radio Receiver
T6ae - 6-Pin Connector, Blue
T6f - 6-Pin Connector, Black
T6i - 6-Pin Connector, Black
T8l - 8-Pin Connector, Black
T12a - 12-Pin Connector, Black
T14r - 14-Pin Connector, Black
T54a - 54-Pin Connector, Black
B668 - CAN Bus Extended High Connection 2 (in Main Wiring Harness)
B669 - CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
* - Refer to Applicable Wiring Diagram
*2 - For Vehicles with a Parking Heater
*3 - Depending on Equipment
*4 - Refer to Applicable Night Vision System Wiring Diagram
*5 - For Vehicles with Automatic Dimming Interior Rearview Mirror
*6 - For Vehicles with Night Vision System
