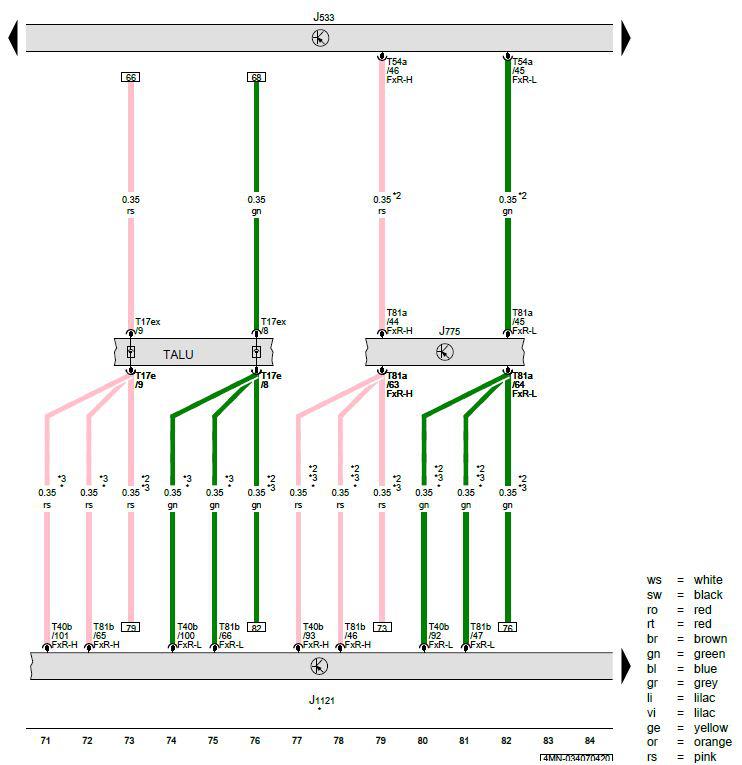

Data Bus on Board Diagnostic Interface, Drivetrain Control Module, Driver Assistance Systems Control Module
J533 - Data Bus on Board Diagnostic Interface
J775 - Drivetrain Control Module
J1121 - Driver Assistance Systems Control Module
T17e - 17-Pin Connector, Blue
T17ex - 17-Pin Connector, Blue
T40b - 40-Pin Connector, Black
T54a - 54-Pin Connector, Black
T81a - 81-Pin Connector, Black
T81b - 81-Pin Connector, Black
TALU - Coupling Point on Left A-Pillar, Bottom
* - For Driver Assistance System
*2 - For Vehicles with Level Control System
*3 - Depending on Equipment
