Left/Right Rear Treble Speaker -R14- / -R16-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

The Left Rear Treble Speaker -R14- is clipped into the door trim panel.

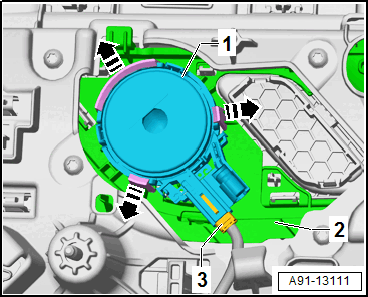

-- Release and disconnect the connector -3- from the Left Rear Treble Speaker -R14- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Press the tabs -arrows- until the Left Rear Treble Speaker -R14- -1- can be removed from the door trim panel -2-.
