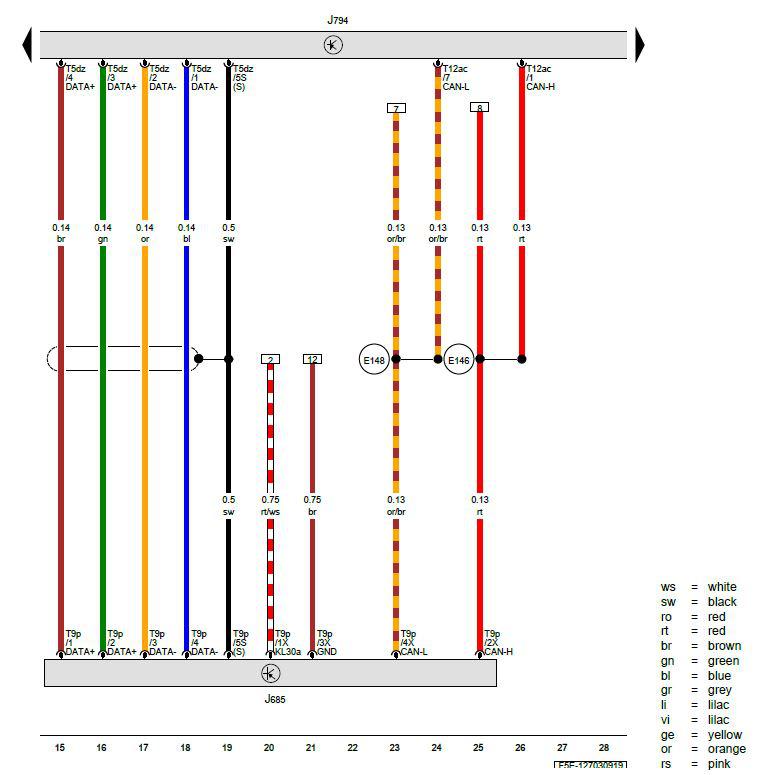

Front Information Display Control Head, Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J685 -  Front Information Display Control Head

J794 -  Information Electronics Control Module 1

T5dz -  5-Pin Connector, Black

T9p -  9-Pin Connector, Black

T12ac -  12-Pin Connector, Gray

E146 -  Connection 2 (CAN Bus Information Electronics Control Module 1, High)

E148 -  Connection 2 (CAN Bus Information Electronics Control Module 1, Low)
