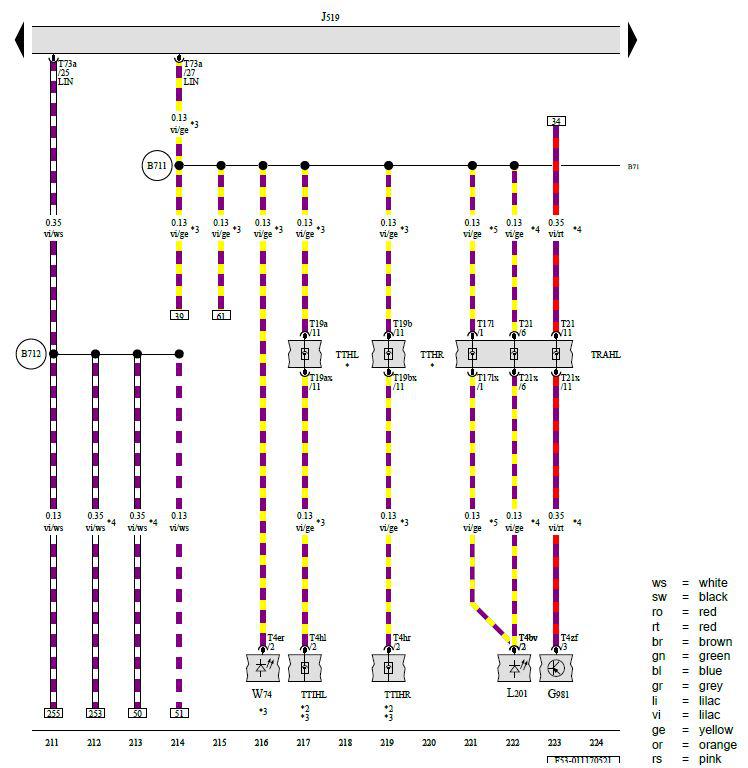

Vehicle Electrical System Control Module, LIN Bus Connection 6 (in Main Wiring Harness), LIN Bus Connection 7 (in Main Wiring Harness)
G981 - Rear Passenger Compartment Monitoring Left Ultrasound Sensor
J519 - Vehicle Electrical System Control Module
L201 - Left Rear Door Ambient Lighting Bulb 1
T4bv - 4-Pin Connector, Brown
T4er - 4-Pin Connector, Black
T4hl - 4-Pin Connector, Black
T4hr - 4-Pin Connector, Black
T4zf - 4-Pin Connector, Black
T17l - 17-Pin Connector, Black
T17lx - 17-Pin Connector
T19a - 19-Pin Connector, Black
T19ax - 19-Pin Connector, Black
T19b - 19-Pin Connector, Black
T19bx - 19-Pin Connector, Black
T21 - 21-Pin Connector, Black
T21x - 21-Pin Connector, Black
T73a - 73-Pin Connector, Black
TRAHL - Left Rear Wheel Housing Wiring Coupling Point
TTHL - Left Rear Door Coupling Point
TTHR - Right Rear Door Coupling Point
TTIHL - Coupling Point in Left Rear Door
TTIHR - Coupling Point in Right Rear Door
W74 - Fiber Optic Cable for Front Center Console Ambient Lighting
B711 - LIN Bus Connection 6 (in Main Wiring Harness)
B712 - LIN Bus Connection 7 (in Main Wiring Harness)
* - Sportback
*2 - Refer to Applicable Convenience System Wiring Diagram
*3 - For Vehicles with Auxiliary Lamps
*4 - For Convertible
*5 - Coupe
