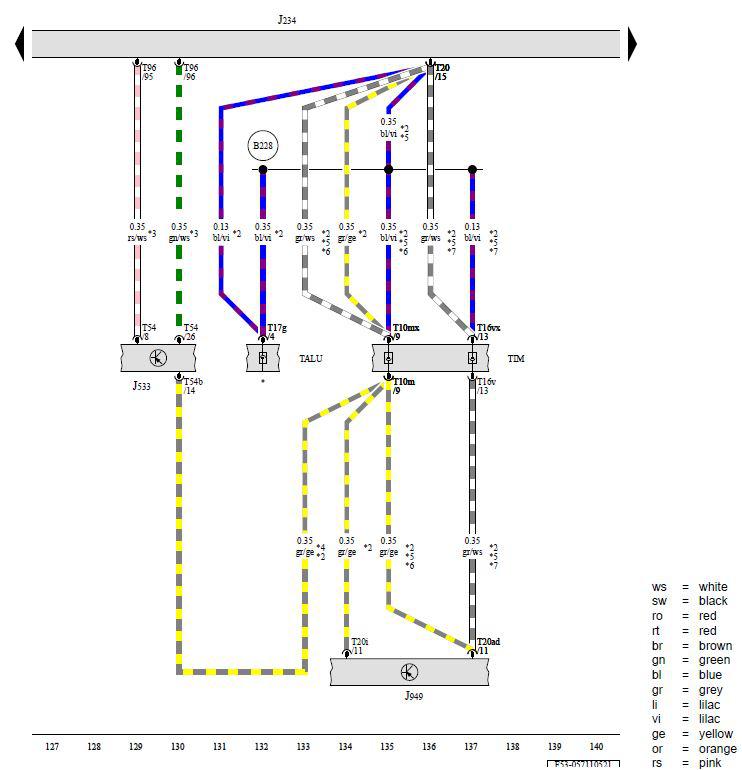

Airbag Control Module, Data Bus on Board Diagnostic Interface, Control Module for Emergency Call Module and Communication Unit

G00611383Courtesy of AUDI OF AMERICA, LLC

J234 -  Airbag Control Module

J533 -  Data Bus on Board Diagnostic Interface

J949 -  Control Module for Emergency Call Module and Communication Unit

T10m -  10-Pin Connector, Black

T10mx -  10-Pin Connector, Black

T16v -  16-Pin Connector, Brown

T16vx -  16-Pin Connector, Brown

T17g -  17-Pin Connector, Blue

T20 -  20-Pin Connector, Yellow

T20ad -  20-Pin Connector, Black

T20i -  20-Pin Connector, Black

T54 -  54-Pin Connector, Black

T54b -  54-Pin Connector, Blue

T96 -  96-Pin Connector, Yellow

TALU -  Coupling Point on Left A-Pillar, Bottom

TIM -  Coupling Point in Interior, Center

B228 -  Crash Signal Connection (in Interior Wiring Harness)

* -  Refer to Applicable Seat Adjustment Wiring Diagram

*2 -  Depending on Equipment

*3 -  Data Bus Wire (Flexray Bus)

*4 -  For Vehicles Without a Power Driver Seat

*5 -  Refer to Applicable Communication Wiring Diagram

*6 -  Through November 2019

*7 -  From December 2019
