Ignition Coils, Removing And Installing: Removing

Depending on the model, preliminary work may be required. Refer to IGNITION COILS, REMOVING AND INSTALLING .

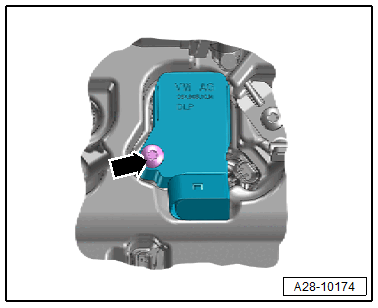

-- Remove the bolt -arrow- for the corresponding ignition coil.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the :T10530  in the ignition coil opening -1-.

Fig 1: Identifying Puller T10530

Courtesy of AUDI OF AMERICA, LLC

-- Turn the knurled nut -2- clockwise in direction of -arrow- until the puller is clamped.

-- Remove the ignition coil carefully vertically in direction of -arrow- using the :T10530  .

Fig 2: Identifying Puller T10530

Courtesy of AUDI OF AMERICA, LLC
