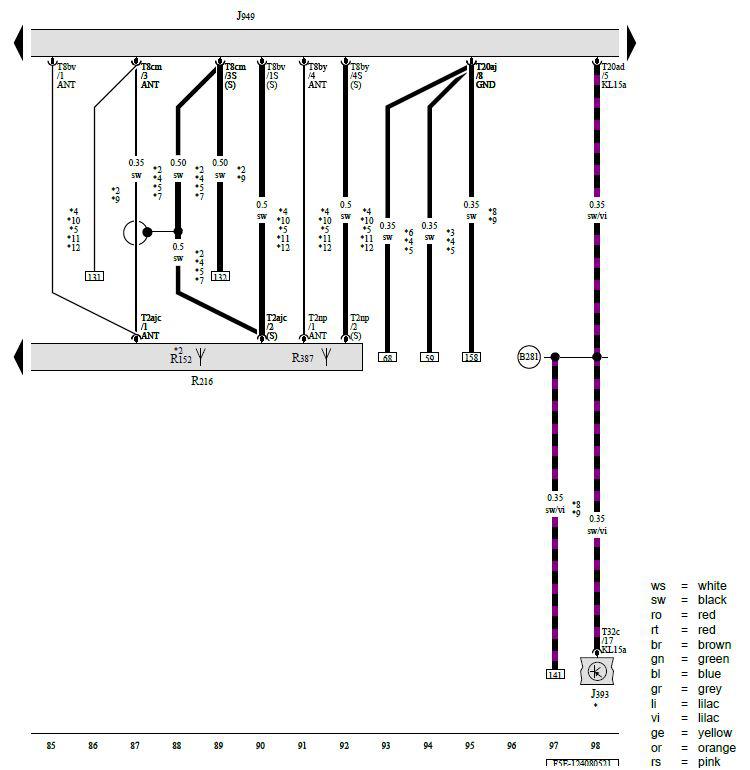

Comfort System Central Control Module, Control Module for Emergency Call Module and Communication Unit, Roof Antenna
J393 - Comfort System Central Control Module
J949 - Control Module for Emergency Call Module and Communication Unit
R152 - Bluetooth Antenna
R216 - Roof Antenna
R387 - Antenna for External Communication with Vehicle
T2ajc - 2-Pin Connector, Black
T2np - 2-Pin Connector, White
T8bv - 8-Pin Connector, Light Blue
T8by - 8-Pin Connector, White
T8cm - 8-Pin Connector, White
T20ad - 20-Pin Connector, Black
T20aj - 20-Pin Connector, Naturally Cloudy
T32c - 32-Pin Connector, Black
B281 - Positive Connection 5 (15a) (in Main Wiring Harness)
* - Refer to Applicable Convenience System Wiring Diagram
*2 - For Vehicles with Cell Phone/Telephone
*3 - For LHD Vehicles
*4 - Coupe
*5 - Sportback
*6 - For RHD Vehicles
*7 - For Vehicles Without External Vehicle Communication
*8 - For Vehicles with Seat Belt Microphone
*9 - For Convertible
*10 - For Vehicles with China Equipment
*11 - From December 2021
*12 - For Vehicles with External Vehicle Communication
