Clip On Distance Regulation Control Module -J428-, Replacing

Special tools and workshop equipment required

The Clips Cannot Be Removed without Being Damaged.

Procedure

-- Place a screwdriver between the hook and the housing.

Fig 1: Place A Screwdriver Between Hook And Housing

Courtesy of AUDI OF AMERICA, LLC

-- Bend every hook all the way around with the screwdriver until it audibly breaks off.

-- To prevent the broken hook from getting caught on the housing, remove it from the inside of the clip using needle nose pliers.

-- Insert the new clip into the hole in the housing as shown and then press on it by hand until it clicks into place.

Fig 2: Insert New Clip Into Hole For Housing From Left Side And Push It In By Hand Until It Audibly Engages

Courtesy of AUDI OF AMERICA, LLC

-- Mount and screw in the stud bolt.

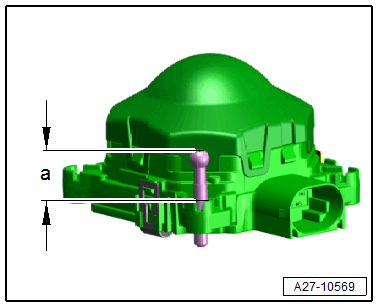

-- Turn the stud bolt into the distance regulation control module up to the dimension -a-.

Courtesy of AUDI OF AMERICA, LLC

-- Measure the dimension -a- at all stud bolts using the :VAS6335 and correct if necessary.
