Level Control System Compressor Electronics -J1135-, REMOVING AND INSTALLING: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Switch off the ignition.

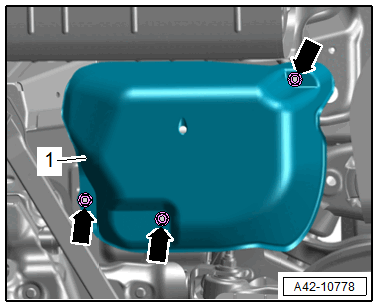

-- Remove the nuts -arrows-, and remove the cover -1- for the air supply unit.

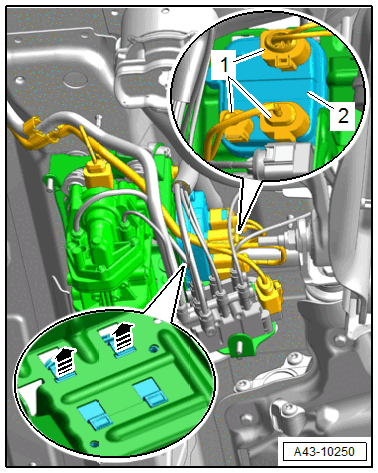

-- Disconnect the connectors -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Carefully release the catches -arrows- and remove the control module -2- upward from the bracket.
