Overview - Steering Column, Power

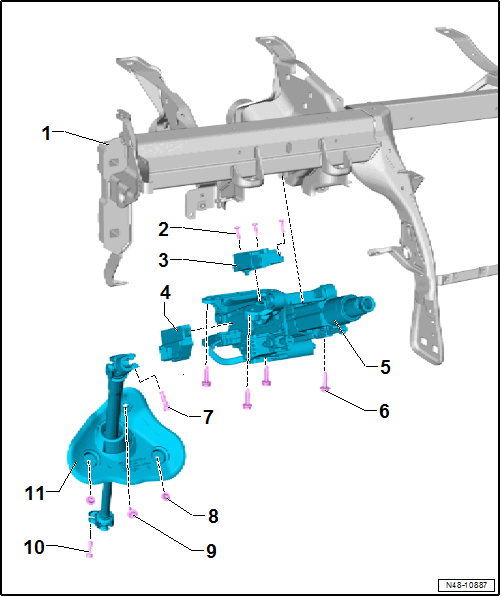

Fig 1: Exploded View Of Steering Column, Power

Courtesy of AUDI OF AMERICA, LLC

Central Tube
Bolt
- 6 Nm
- Quantity: 3
Electronic Steering Column Lock Control Module -J764-
- Removing and Installing. Refer to Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING .
Power Adjustable Steering Column Control Module -J866-
- Removing and Installing. Refer to Power Adjustable Steering Column Control Module -J866-, REMOVING AND INSTALLING .
Steering Column
- Removing and Installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
- Check for damage. Refer to STEERING COLUMN, CHECKING FOR DAMAGE .
Bolt
- Quantity: 4
- Tightening specification and sequence. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
Bolt
- 20 Nm + 90°
- Always replace after removing
- Clean the threaded hole (for example, using a thread tap) before installing the new bolt.
- Install the bolt first by hand in the first threads. Check the if the steering intermediate shaft is seated correctly by pulling. Tighten the bolt.
Nut
- 4.5 Nm
- Quantity: 2
Bolt
- 4.5 Nm
Bolt
- 20 Nm + 90°
- Always replace after removing
- Clean the threaded hole, for example, using a thread tap, before installing the new bolt.
- Install the bolt first by hand in the first threads. Check if the steering intermediate shaft is seated correctly by pulling. Tighten the bolt.
Steering Intermediate Shaft
- With sealing lip
- Removing and Installing. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .
