Engine, Supporting In Installation Position
Special tools and workshop equipment required
- Engine Support Bridge: 10-222 A
- Engine Support - Supplement Kit: T40093A
Procedure
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- Remove the left and right covers for the fender. Refer to OVERVIEW - FENDER .

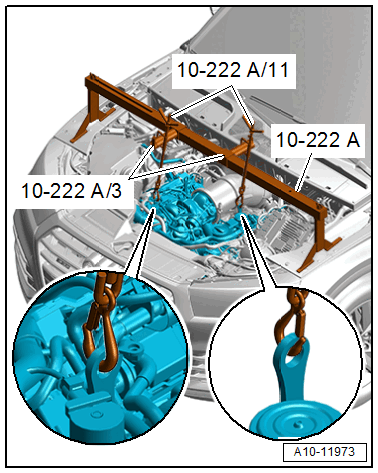

-- Position the : 10-222A at the left and right side on the longitudinal member.
-- Engage the : 10-222A/11 at the left and right on the engine lifting eyes.
-- Tension the engine with the spindles slightly until the engine mount is not under a load.
Assembling
Assemble in the reverse order of removal. Note the following:
-- Install the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
