Windshield, Removing And Installing: Removing

-- Insert a cutting guard from the : VAS861001A  inside between the cutting wire and trim panels.

-- Remove the left and right drip rail. Refer to DRIP RAIL, REMOVING AND INSTALLING .

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

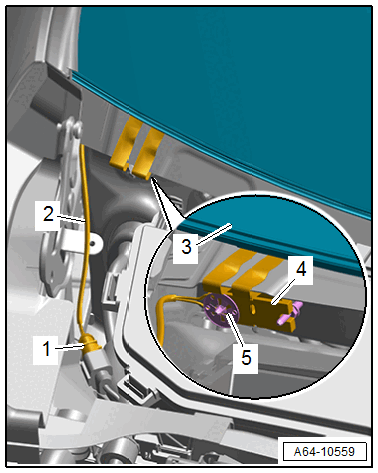

-- If equipped, release and disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness -2-.

-- Pry out the lock washer -5-.

-- Remove the heating element -4- from the threaded pins and secure it to the windshield -3- with adhesive tape.

-- Remove the sun visors and the sun visor center support. Refer to OVERVIEW - SUN VISORS .

-- Remove the left and right A-pillar trim panels. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the front interior lamp/reading lamp. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

-- Remove the interior rearview mirror cover. Refer to INTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

-- Remove the front roof grab handle. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .

-- If equipped, release and disconnect the connectors -1 through 5-.

Courtesy of AUDI OF AMERICA, LLC

If the windshield is replaced, additionally install:

• The rain/light recognition sensor. Refer to RAIN/LIGHT RECOGNITION SENSOR, REMOVING AND INSTALLING .
• Driver Assistance Systems Front Camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA -R242-, REMOVING AND INSTALLING .
• Interior rearview mirror. Refer to INTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

-- Insert the : VAS861001/1A  in the piercing awl -1-.

Courtesy of AUDI OF AMERICA, LLC

TIP:

To prevent any damage, cover the area -arrow- where the piercing awl comes out at the body flange with adhesive tape.

-- Working from the inside outward, pierce the adhesive bead in this area using the awl -1-.

-- Pull through the cutting cord toward the outside.

-- Place the : VAS861001/1A  all around under the windshield.

Courtesy of AUDI OF AMERICA, LLC

TIP:

Courtesy of AUDI OF AMERICA, LLC

To insert the separation cut under the cover profile, use the threading tool -1- from the : VAS861001A  .

-- Secure the outer end of the cutting cord on the right hinge for the hood.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the removal device using the reel device -1- at the lower left on the inside of the window.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the : VAS861001/1A  in the reel device -arrow-.

-- Tension the cutting cord with the reel device.

-- Insert the cut out protection -2- from the : VAS861001A  to protect the area between the : VAS861001/1A  and instrument panel cover.

-- Cut free in the lower area of the windshield.

Courtesy of AUDI OF AMERICA, LLC

-- Offset the removal device -1- to the left upper edge of the windshield.

Courtesy of AUDI OF AMERICA, LLC

-- Cut the left area of the A-pillar by moving upward and along.

Courtesy of AUDI OF AMERICA, LLC

-- Offset the removal device -2- to the right upper edge of the windshield.

Courtesy of AUDI OF AMERICA, LLC

-- Insert the cut out protection -1- from the : VAS861001A  to protect the area between the : VAS861001/1A  and the headliner.

-- Cut free in the upper area of the windshield.

Courtesy of AUDI OF AMERICA, LLC

-- Offset the removal device -1- to the right lower edge of the windshield.

Courtesy of AUDI OF AMERICA, LLC

-- Cut the right area of the A-pillar by moving downward and along.

Courtesy of AUDI OF AMERICA, LLC

-- Lift the windshield off the vehicle with two suction lifters and with a second technician.
