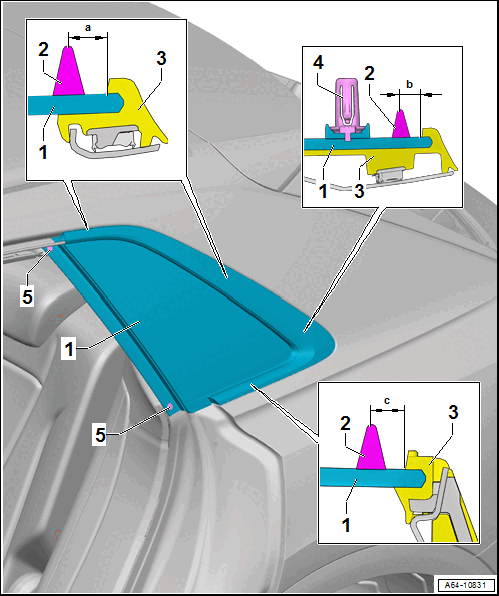

Overview - Rear Side Window

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.

Courtesy of AUDI OF AMERICA, LLC

1. Rear Side Window
   • Removing and installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
   • After installing, push in using the fasteners
2. Adhesive Bead
   • Observe the minimum curing time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
   • Note the different distances to the window edge
     • Dimension -a- = 12.5 mm
     • Dimension -b- = 12.5 mm
     • Dimension -c- = 8 mm
   • Adhesive bead thickness. Refer to Adhesive Application: .
3. Molding
   • Must not be damaged in the visible area
4. Retainer
   • No replacement part
   • Is cut through when removing the window.
5. Pop Rivet
   • There must not be any burrs on the rivet head when riveting
