Overview - Assembly Mounts

Engine Mount

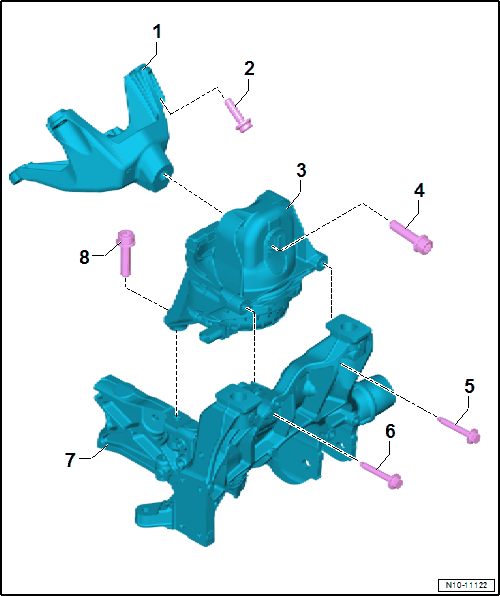

Fig 1: Exploded View Of Engine Mount

Courtesy of AUDI OF AMERICA, LLC

1. Engine Support
   • Removing and Installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
2. Bolt
   • 55 Nm
3. Engine Mount
   • with:
     • Left Electrohydraulic Engine Mount Solenoid Valve -N144-
     • Right Electrohydraulic Engine Mount Solenoid Valve -N145-
   • Removing and Installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
4. Bolt
   • Replace after removing.
   • 90 Nm + 90°
5. Bolt
   • 30 Nm
6. Bolt
   • 30 Nm
7. Subframe
8. Bolt
   • 55 Nm

Transmission Mount

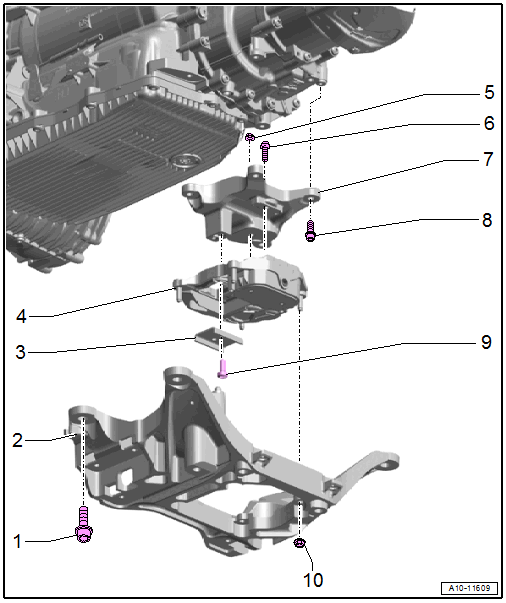

Fig 2: Exploded View Of Transmission Mount

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • Tightening specification. Refer to the appropriate Service Information .
2. Tunnel Crossmember
   • Removing and Installing. Refer to the appropriate Service Information .
3. Stop
   • For the rear transmission mount
4. Rear Transmission Mount
   • Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
5. Nut
   • Only remove when the transmission mount must be separated from the transmission support
   • Tightening specification 20 Nm
6. Bolt
   • Replace
   • Only remove when the transmission mount must be separated from the transmission support
   • Tightening specification: 20 Nm 90°
7. Transmission Support
   • Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
8. Bolt
   • Tightening specification: 40 Nm
9. Bolt
   • Replace
   • Only remove when the transmission mount must be separated from the transmission support
   • Tightening specification: 20 Nm 90°
10. Nut
    • Tightening specification 20 Nm

Support Bearing, Installation Position

Fig 3: Support Bearing, Installation Position

Courtesy of AUDI OF AMERICA, LLC

• The raised section -2- of the engine support must engage into the opening -1- on the support bearing.
