Engine, Supporting In Installation Position

WARNING: This page is about a different car, the 2020 Audi Q5 e, 2020 Audi Q5, 2019 Audi SQ5, 2019 Audi Q5, and 2018 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Support Bridge: 10-222A

Procedure

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the front fender cover. Refer to OVERVIEW - FENDER .

-- Remove the side plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

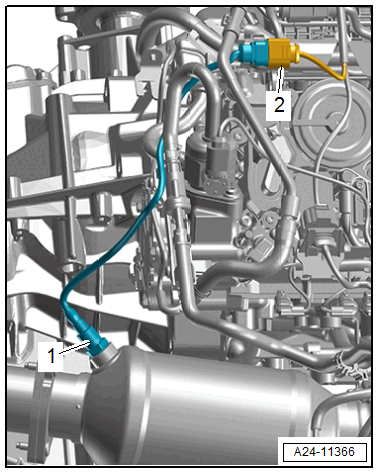

-- Remove the connector -2- for the Oxygen Sensor 1 After Catalytic Converter -GX7- -1- from the bracket and disconnect it. There are different versions.

Fig 1: Component location Oxygen Sensor after Catalytic Converter -G130- with Heater for Oxygen Sensor 1 after Catalytic Converter -Z29-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right covers for the fender. Refer to OVERVIEW - FENDER .

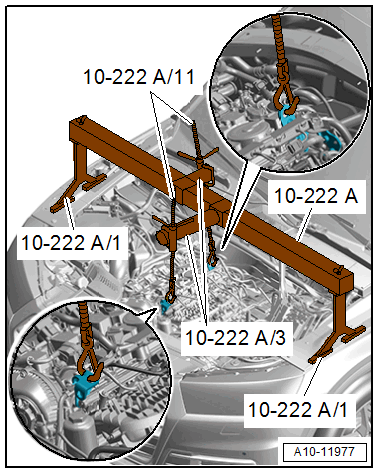

-- Position the : 10-222A as shown on the left and right fender bolting edges.

Courtesy of AUDI OF AMERICA, LLC

-- Engage the : 10-222A/11 on the engine lifting eye.

-- Pretension the engine with the spindle, do not lift.

Assembling

Assembly is performed in reverse order.
