Subwoofer -R211-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the luggage compartment floor.

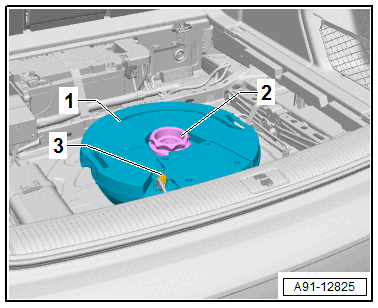

-- Release and disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- Remove the Subwoofer -R211- -1- upward out of the spare tire well.
