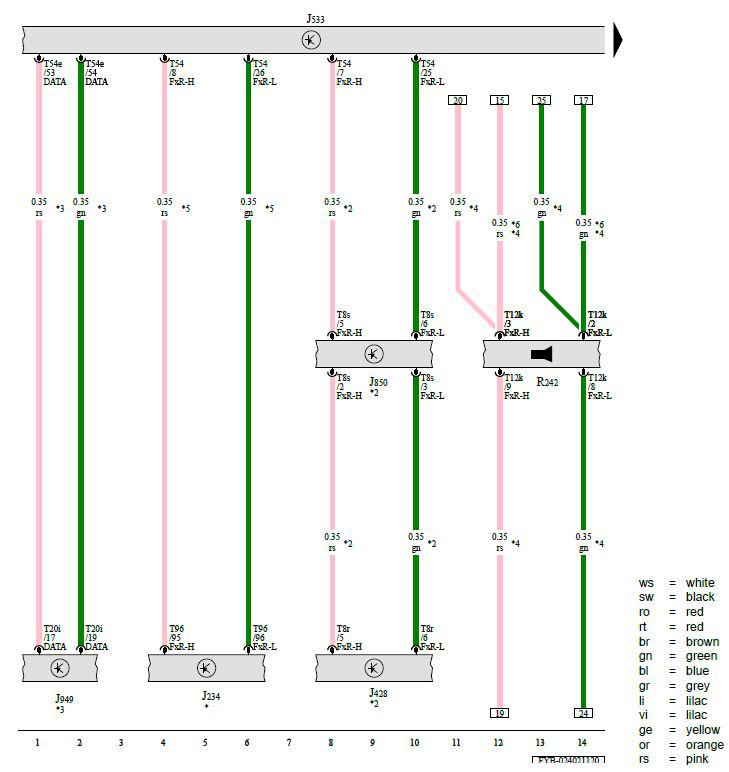

Airbag Control Module, Control Module for Adaptive Cruise Control, Data Bus on Board Diagnostic Interface, Control Module 2 for Adaptive Cruise Control, Control Module for Emergency Call Module and Communication Unit, Driver Assistance Systems Front Camera
J234 - Airbag Control Module
J428 - Control Module for Adaptive Cruise Control
J533 - Data Bus on Board Diagnostic Interface
J850 - Control Module 2 for Adaptive Cruise Control
J949 - Control Module for Emergency Call Module and Communication Unit
R242 - Driver Assistance Systems Front Camera
T8r - 8-Pin Connector, Black
T8s - 8-Pin Connector, Black
T12k - 12-Pin Connector, Black
T20i - 20-Pin Connector, Black
T54 - 54-Pin Connector, Black
T54e - 54-Pin Connector, Gray
T96 - 96-Pin Connector, Black
* - Refer to Applicable Airbag Wiring Diagram
*2 - For Vehicles with Adaptive Cruise Control (ACC)
*3 - For Vehicles with Emergency Call Module
*4 - For Driver Assistance System
*5 - The Color of the Wires Depends on Vehicle Equipment
*6 - For Vehicles with Electronic Damping
