Left Gaskets, Replacing: Installing

Outer Seal, Installing

-- Fill the space between the sealing and dust lip -arrow- halfway with Sealing Grease: G 052 128 A1 on the new seal.

Fig 1: Identifying Oil Seal

Courtesy of AUDI OF AMERICA, LLC

-- Lightly oil the outer edge of the new seal.

-- install the seal.

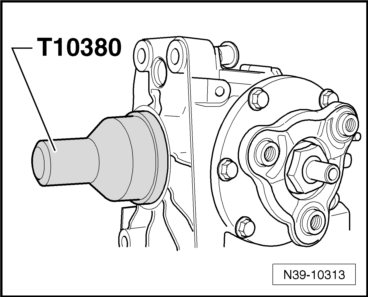

Fig 2: Identifying Installation Of Seal Using Thrust Piece -T10380-

Courtesy of AUDI OF AMERICA, LLC

Inner Seal, Installing

-- Fill the space between the sealing and dust lip -arrow- halfway with Sealing Grease: G 052 128 A1 on the new seal.

Fig 3: Identifying Oil Seal

Courtesy of AUDI OF AMERICA, LLC

-- Lightly oil the outer edge of the new seal.

-- Install the seal until it stops.

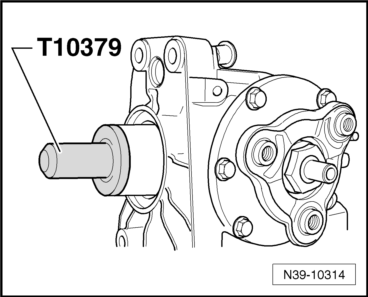

Fig 4: Installing Seal With Special Tool T10379

Courtesy of AUDI OF AMERICA, LLC

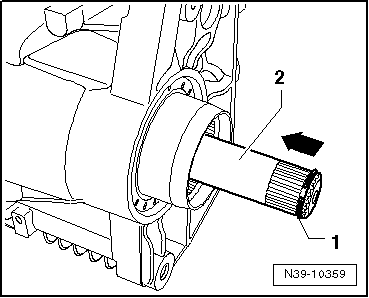

-- Carefully drive the stub shaft in as far as the stop using a plastic hammer.

-- Install a new circlip -1- on the stub shaft.

Fig 5: Identifying Circlip And Flange Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Install the bevel box. Refer to BEVEL BOX, INSTALLING .

-- Check the gear oil in the bevel box. Refer to GEAR OIL, CHECKING LEVEL .
